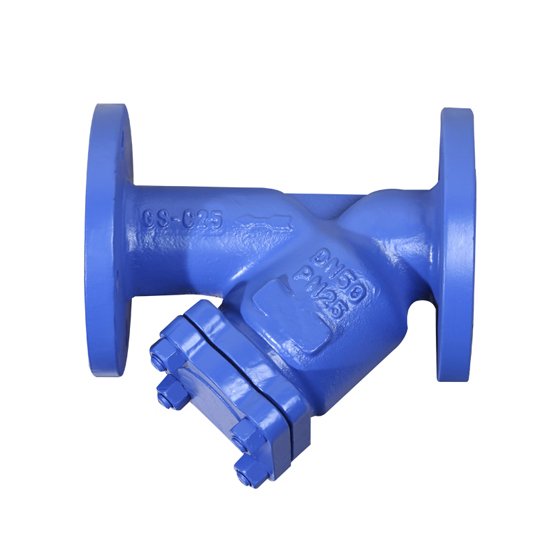

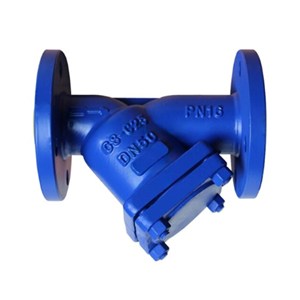

DIN 3352 Y Type Strainers, GS-C25, SS 304 Screen, DN50, PN25

Key Specifications / Features

The China DIN 3352 Y Type Strainers Factory specializes in manufacturing high-quality Y type strainers with a GS-C25 carbon steel body and a stainless steel 304 screen. These strainers are designed in accordance with DIN 3352 standards, featuring a DN50 size, PN16 pressure rating, and 2-inch, Class 150 LB dimensions. They come with raised face (RF) flanged ends, ensuring secure and reliable connections. These strainers are well-suited for applications involving steam, gas, and oil, providing effective filtration and protection for downstream equipment.

As an essential piece of high-efficiency filtration equipment in purification engineering, Y-type strainers have proven highly effective in treating both domestic and industrial wastewater. Their versatile design and wide range of applications have made them highly popular. These strainers have effectively processed substantial volumes of wastewater across various industries, facilitating the efficient reuse of valuable water resources and conserving significant amounts of water. The operational advantages of Y-type filters include full automation, maintenance-free operation, a large filtration area, high filtration efficiency, long service life, stainless steel construction, customizable filtration accuracy, and a comprehensive range of specifications. Compared to other filtration devices, Y-type strainers are among the most effective in engineering. The treated water not only meets national discharge standards but also achieves the goals of reuse and recycling.

Technical Specification

» Normal Size Range: DN15-DN600
» Normal Pressure Rating: PN16-PN40
» Material: ASTM A216 WCB, A351 CF8, CF8M, CF3, CF3M, A350 LF2, A217 WC6, WC9
» Filtering Accuracy: 18-30 mesh for water filter, 10-100 mesh for air filter, 100-480 mesh for oil filter
» Temperature Range: -29°C to +425°C
» Ends Connections: RF, BW
» Medium: Steam, High-temperature Steam, Gas, Oil

Standards Compliance

» Design and Manufacture: DIN 3352, DIN 3840
» Face to Face (end to end): EN 558-1
» Flanged Connection: EN 1092-B1
» Test and Inspection: EN 12266
» Butt Welded End: EN 12627, DIN 3239

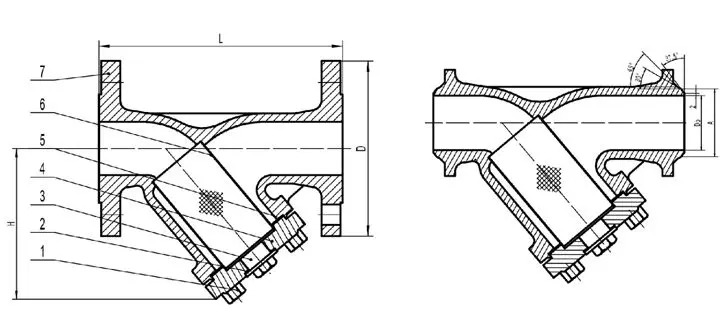

Structural Diagram

Material for Main Parts
