Electric Actuated Pinch Valve, Cast Iron, DN100, PN16

Key Specifications / Features

The Electric Actuated Pinch Valve, with a cast iron body and rubber sleeve, offers automatic flow control for a variety of industrial applications. It features a 4-inch (DN100) size, Class 150 LB pressure rating (PN10), and flanged end connections for secure installation. Designed for precise and reliable operation, this valve is ideal for handling slurries, powders, and abrasive media, providing efficient flow regulation with minimal maintenance.

Pinch valves are ideal for shut-off or control applications involving abrasive or corrosive slurries, powders, or granular substances. Our advanced flow control solutions are designed to meet the most demanding customer specifications. valves help improve productivity by enhancing process efficiency and extending service intervals.

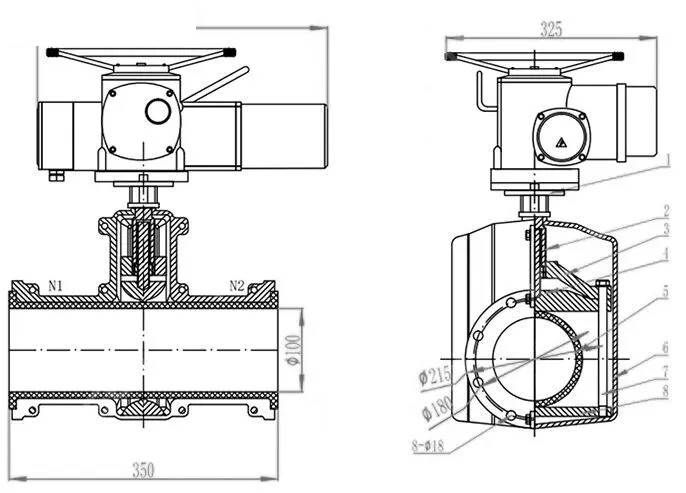

The pinch valve design consists of three main components: the sleeve, the body, and the actuator. The sleeve is the only part in contact with the process medium, and the construction and materials of all three components can be customized to suit most process conditions. Our pinch valves provide a 100% tight shut-off, even when solids have built up on the sleeve wall. When compressed, any crystallized particles flake off the sleeve surface and are washed downstream.

Technical Specification

Normal Size Range: 1–16 Inch (DN25–DN400)
Normal Pressure Rating: PN10-PN16, Class 150 LB
Body Materials: Aluminium Alloy, Stainless Steel, GG25, GGG40, ASTM A216 WCB
Sleeve Materials: Natural Rubber, EPDM
Connection: Flanged
Operation: Handwheel, Bevel Gear, Pneumatic, Electric
Temperature Range: -29°C to 85°C
Medium: Slurry, Abrasive, Dust
