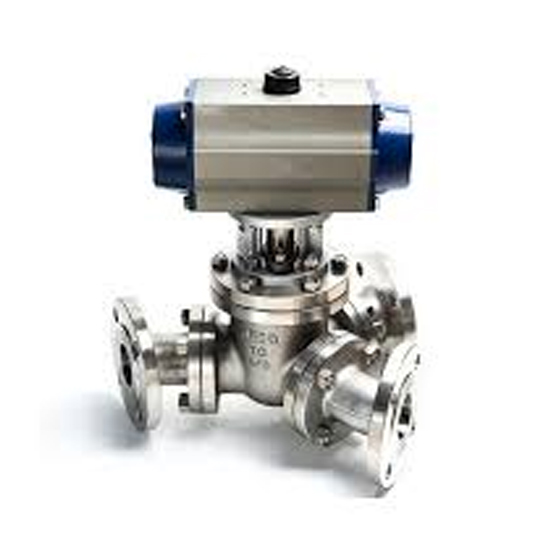

Y-Type Three-Way Ball Valve, A351 CF8, DN65, PN16, Pneumatic
- Product Name:
- Y-Type Three-Way Ball Valve, 135 Degree Port
- Body Material:
- ASTM A351 CF8
- Size:
- DN65, 2-1/2 Inch
- Pressure:
- PN16, Class 150 LB
- End Connection:
- Flanged
- Operation:
- Pneumatic Actuator
Key Specifications / Features
The Y-Type Three-Way Ball Valve, made from ASTM A351 CF8, features a 135-degree port design for efficient flow diversion. With a DN65 (2-1/2 inch) size, Class 150 LB pressure rating, and PN16, it ensures reliable performance in various industrial systems. Equipped with a pneumatic actuator for precise control, this valve is ideal for applications requiring efficient flow regulation and quick response.
The Y-type 135-degree 3-way ball valve is a versatile and reliable solution designed for efficient flow-switching in various industries, including automotive, power, and lithium battery manufacturing. This valve enables precise flow control and media distribution, making it an ideal choice for applications that require flow-switching capabilities in complex systems.
Working Process of Pneumatic Diverter Valve
A pneumatic diverter valve consists of an inlet, an outlet, and a mechanism (such as a rotating disc or sliding gate) that directs powder flow to the desired outlet. When activated, the valve adjusts the direction of the powder flow, allowing it to be diverted to a different location or process within the handling system. This functionality is crucial for controlling the distribution of powdered materials in various industrial applications.
Product Range
» Body Material: Stainless steel and carbon steel, offering high strength and durability.
» Body Style: Available in Y 120° or Y 135° port
» Sealing Material: PTFE, RPTFE, metal seal + STL for reliable sealing.
» Size Range: 2-12 Inch (DN50-DN300)
» Pressure Range: PN16, PN25, PN40, Class 150 LB, Class 300 LB
» Temperature Range: Up to 180°C
» Media Compatibility: Suitable for solid powders, liquid bulk, rubber, and other media.
» Control Options: Pneumatic actuator and electric actuator for precise flow control and management.
» Unique Design: The three-way Y-type 135-degree configuration ensures even flow distribution and facilitates medium switching without residue.

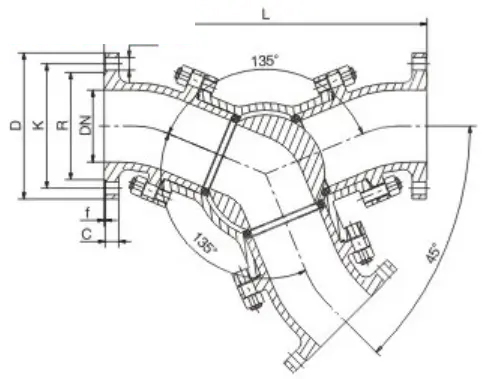

Main Connection Dimensions
| DN | L | D | K | R | C | f | n-d |
| 50 | 340 | 160/165 | 125 | 100 | 20 | 3 | 4-18 |
| 65 | 400 | 180/185 | 145 | 120 | 20 | 3 | 4-18 |
| 80 | 410 | 195/200 | 160 | 135 | 20 | 3 | 8-18 |
| 100 | 460 | 215/220 | 180 | 155 | 22 | 3 | 8-18 |
| 125 | 560 | 245/250 | 210 | 185 | 22 | 3 | 8-18 |
| 150 | 660 | 280/285 | 240 | 210 | 24 | 3 | 8-23 |
| 200 | 800 | 335/340 | 295 | 265 | 24 | 3 | 12-23 |
| 250 | 1030 | 405 | 355 | 320 | 30 | 3 | 12-25 |
| 300 | 1140 | 460 | 410 | 375 | 30 | 4 | 12-25 |
