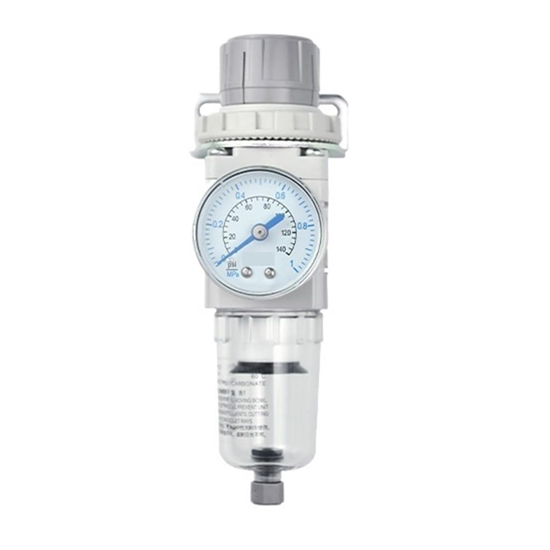

Custom Air Filter, 1/8 Inch, 1/4 Inch, 40 μm, 9.5 kgf/cm2

Key Specifications / Features

The Customizable Air Filter Supplier offers versatile air filters designed to meet specific industrial needs. These filters feature port sizes of either 1/8 inch or 1/4 inch, providing flexibility for different installation requirements. With a filtration rating of 40 μm, they effectively remove impurities from the air. The filters can handle a maximum adjustable pressure of 9.5 kgf/cm², ensuring reliable performance in various pneumatic systems. These customizable air filters are ideal for applications requiring clean, high-quality air supply.

The air source treatment triple unit consists of three main components: a pressure reducing valve, a filter, and an oil mist lubricator.
Pressure Reducing Valve: Maintains stable outlet pressure, ensuring the gas source remains constant.
Filter: Removes moisture and impurities from compressed air, preventing contaminants from entering downstream equipment.
Oil Mist Lubricator: Automatically lubricates moving parts, including those that are difficult to access, significantly extending equipment service life.

Technical Parameters

» Model: AC1500, AFC1500, AC2000, AFC2000
» Working Medium: Air
» Port Size: 1/8 Inch, 1/4 Inch
» Filtration Rating: 40 μm
» Manual drainage operating pressure range: 0 – 9.5 kgf/cm²
» Differential pressure drainage range: 1.5 – 9.5 kgf/cm²
» Maximum Adjustable Pressure: 9.5 kgf/cm²
» Maximum Pressure Resistance: 15 kgf/cm²
» Operating Temperature Range: 5 °C to 60 °C
» Filter Cup Capacity: 15 cc
» Oil Cup Capacity: 25 cc
» Recommended Lubricating Oil: ISO VG32 or equivalent
» Weight: 0.49 kg / 0.32 kg / 0.49 kg / 0.32 kg (depending on model)
» Main Components: AF1500, AFR1500, AF2000, AFR2000, AR1500, AR2000, AL1500, AL2000
