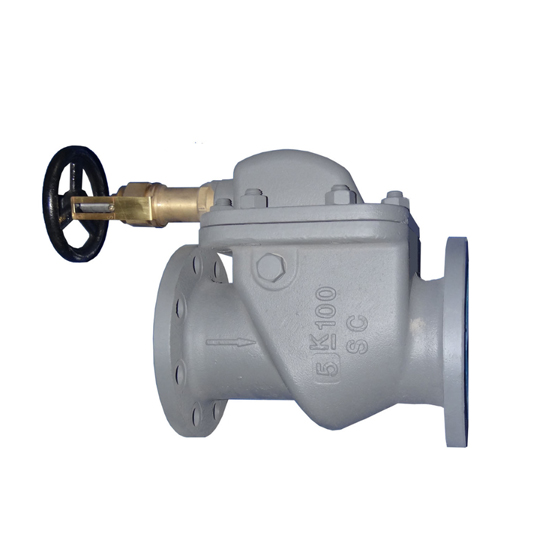

JIS F3059 Straight Storm Valve, JIS SC480, 5K, 100A, 4 Inch
- Product Name:
- JIS F3059 Straight Storm Valve
- Body Material:
- JIS SC480
- Size:
- JIS 100A, 4 Inch
- Pressure:
- JIS 5K
- End Connection:
- FF Flange
- Application:
- Control Water Pressure and Adjust Water Flow
Key Specifications / Features
The JIS F3059 Straight Storm Valve is designed with a JIS SC480 cast carbon steel body for durability. It features a 4-inch (JIS 100A) size, rated for JIS 5K pressure, and is equipped with FF flanged ends for secure connections. This valve is ideal for stormwater management and other high-pressure applications.
The Straight Storm Valve is designed to efficiently control water pressure and adjust water flow in various fluid systems. It is ideal for applications involving sea water, fresh water, oil, and other fluids, making it suitable for industrial, marine, and utility sectors.
Technical Specifications
Port Size: JIS 50A-150A (2-6 Inch)
Pressure: JIS 5K, JIS 10K
Temperature Range: -29°C to 150°C
Body Material: Carbon Steel, Bronze
Connection Type: FF Flange
Medium: Sea Water, Fresh Water, Oil, etc.
Structure: Designed for controlling water pressure and adjusting flow rates.

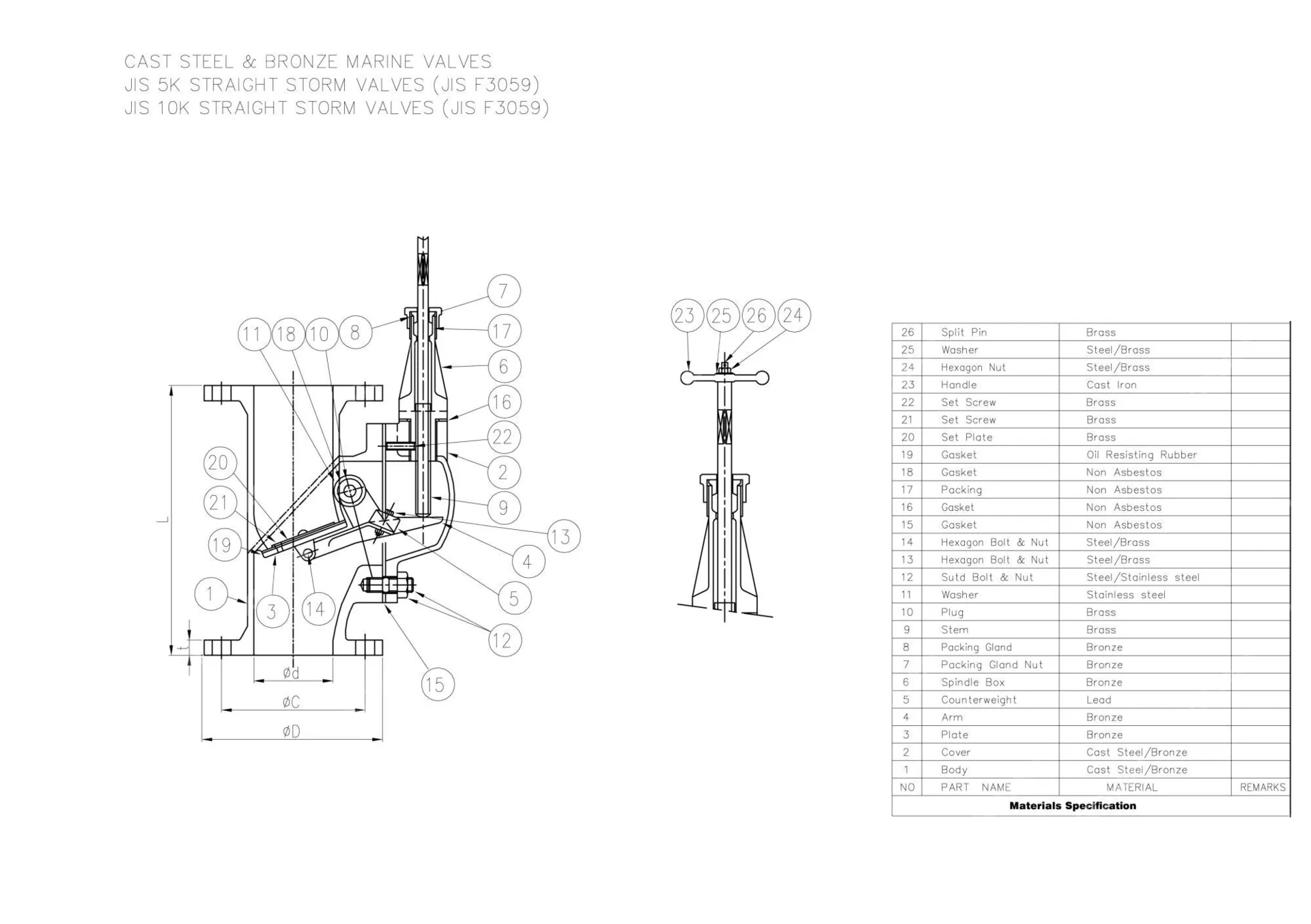

Materials of Main Parts
| NO | Part name | Materail |
| 1 | Body | Cast Steel/Bronze |
| 2 | Cover | Cast Steel/Bronze |
| 3 | Plate | Bronze |
| 4 | Arm | Bronze |
| 5 | Counterweight | Lead |
| 6 | Spindle Box | Bronze |
| 7 | Packing Gland Nut | Bronze |
| 8 | Packing Gland | Bronze |
| 9 | Stem | Brass |
| 10 | Plug | Brass |
| 11 | Washer | Stainless steel |
| 12 | Sutd Bolt & Nut | Steel/Stainless steel |
| 13 | Hexagon Bolt & Nut | Steel/Brass |
| 14 | Hexagon Bolt & Nut | Steel/Brass |
| 15 | Gasket | Non Asbestos |
| 16 | Gasket | Non Asbestos |
| 17 | Packing | Non Asbestos |
| 18 | Gasket | Non Asbestos |
| 19 | Gasket | Oil Resisting Rubber |
| 20 | Set Plate | Brass |
| 21 | Set Screw | Brass |
| 22 | Set Screw | Brass |
| 23 | Handle | Cast Iron |
| 24 | Hexagon Nut | Steel/Brass |
| 25 | Washer | Steel/Brass |
| 26 | Split Pin | Brass |
