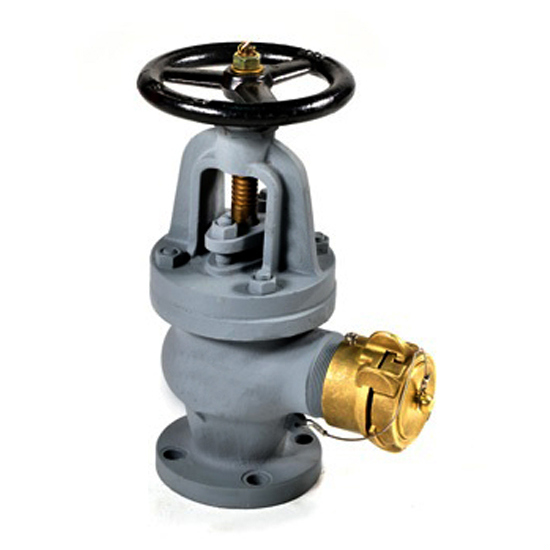

Hose Angle Globe Valve, JIS F7333, Cast Iron FC200, 50A, 5K
- Product Name:
- Cast Iron Hose Angle Globe Valve
- Design Standard:
- JIS F7333
- Body Material:
- Cast Iron FC200
- Size:
- JIS 50A, 2 Inch
- Pressure:
- JIS 5K
- End Connection:
- FF Flanged
- Operation:
- Handwheel
Key Specifications / Features
This Hose Angle Globe Valve, designed according to JIS F7333 standards, features a cast iron FC200 body for strength and durability. With a 2-inch (JIS 50A) size, it supports JIS 5K pressure rating and FF flanged ends for easy installation. Handwheel-operated for manual control, this valve ensures precise flow regulation in various industrial applications, offering reliable performance and efficient handling of fluid systems.
Marine valves are essential components designed to control the pressure, flow rate, and direction of fluids within ship pipelines, ensuring optimal performance under various maritime conditions. These valves serve as critical control devices in fluid pipelines, with the primary function of connecting or cutting off the flow of the medium, altering its flow direction, and regulating pressure and flow rate. By maintaining the integrity and efficiency of fluid systems, marine valves play a crucial role in safeguarding the normal operation of pipeline equipment aboard ships.

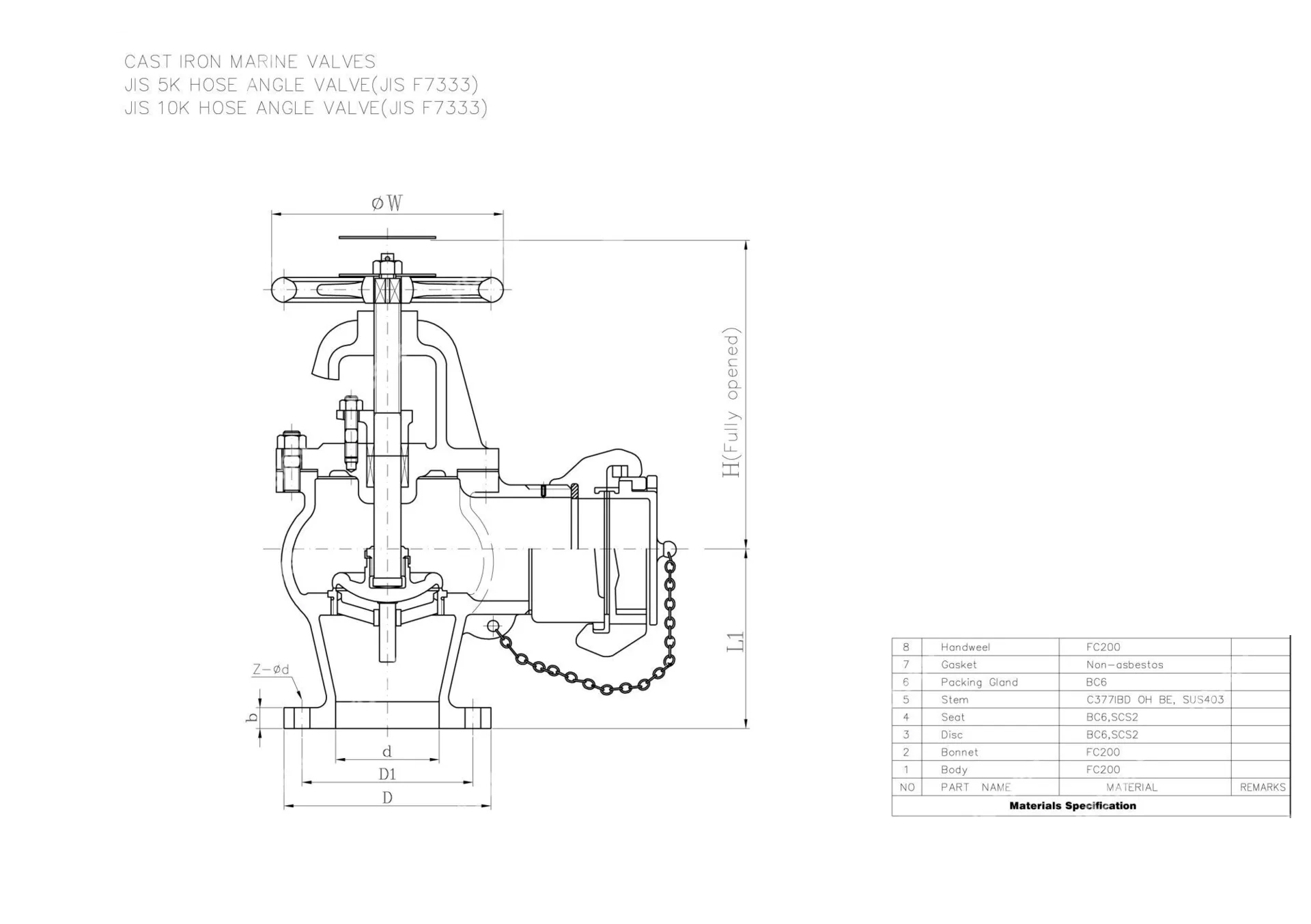

Materials of Main Parts
| NO | Part Name | Material |
| 1 | Body | FC200 |
| 2 | Bonnet | FC200 |
| 3 | Disc | BC6, SCS2 |
| 4 | Seat | BC6, SCS2 |
| 5 | Stem | C377IBD OH BE, SUS403 |
| 6 | Packing Gland | BC6 |
| 7 | Gasket | Non-asbestos |
| 8 | Handweel | FC200 |
