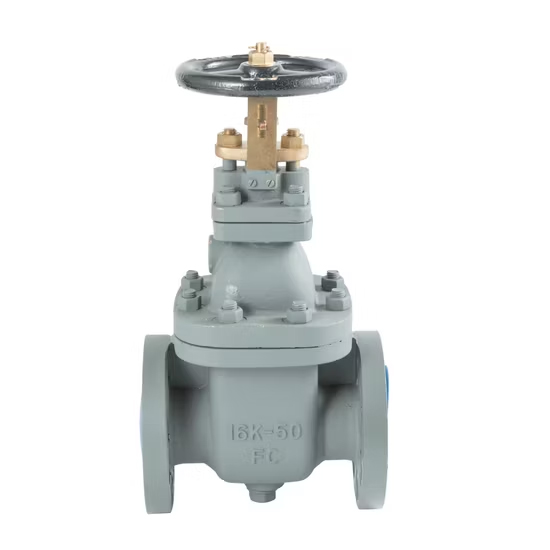

JIS F7364 Marine Gate Valve, Cast Iron, F200, 16K, 50A, 2 IN
- Product Name:
- JIS F7364 Marine Gate Valve
- Body Material:
- FC200, Cast Iron
- Size:
- 50A, 2 Inch
- Pressure:
- 16K
- End Connection:
- Flanged (FF)
- Operation:
- Handwheel
- Standard:
- JIS F7364
Key Specifications / Features
The JIS F7364 Marine Gate Valve features a cast iron F200 body, designed for marine applications. With a size of JIS 50A (2 inches) and a pressure rating of JIS 16K, it ensures reliable performance in marine environments. The valve is equipped with FF flanged ends for secure connections and is handwheel operated for precise control.
The Cast Iron Gate Valve is a robust and reliable valve, designed for controlling the flow of sea water, fresh water, oil, and other fluids. Featuring a JIS wedge design, this valve ensures smooth operation even under varying pressure conditions. Constructed from ductile iron, carbon steel, or stainless steel, the valve body offers excellent strength, durability, and resistance to corrosion.
Technical Specifications
Port Size: JIS 50A-400A, 2-16 Inch
Pressure: JIS 5K, JIS 10K, JIS 16K
Structure: JIS Wedge Cast Iron Gate Valve
Temperature Range: -29°C to 345°C
Body Material: Ductile Iron, Carbon Steel, Stainless Steel
Connection Type: FF Flange
Medium: Sea water, fresh water, oil, and other fluids

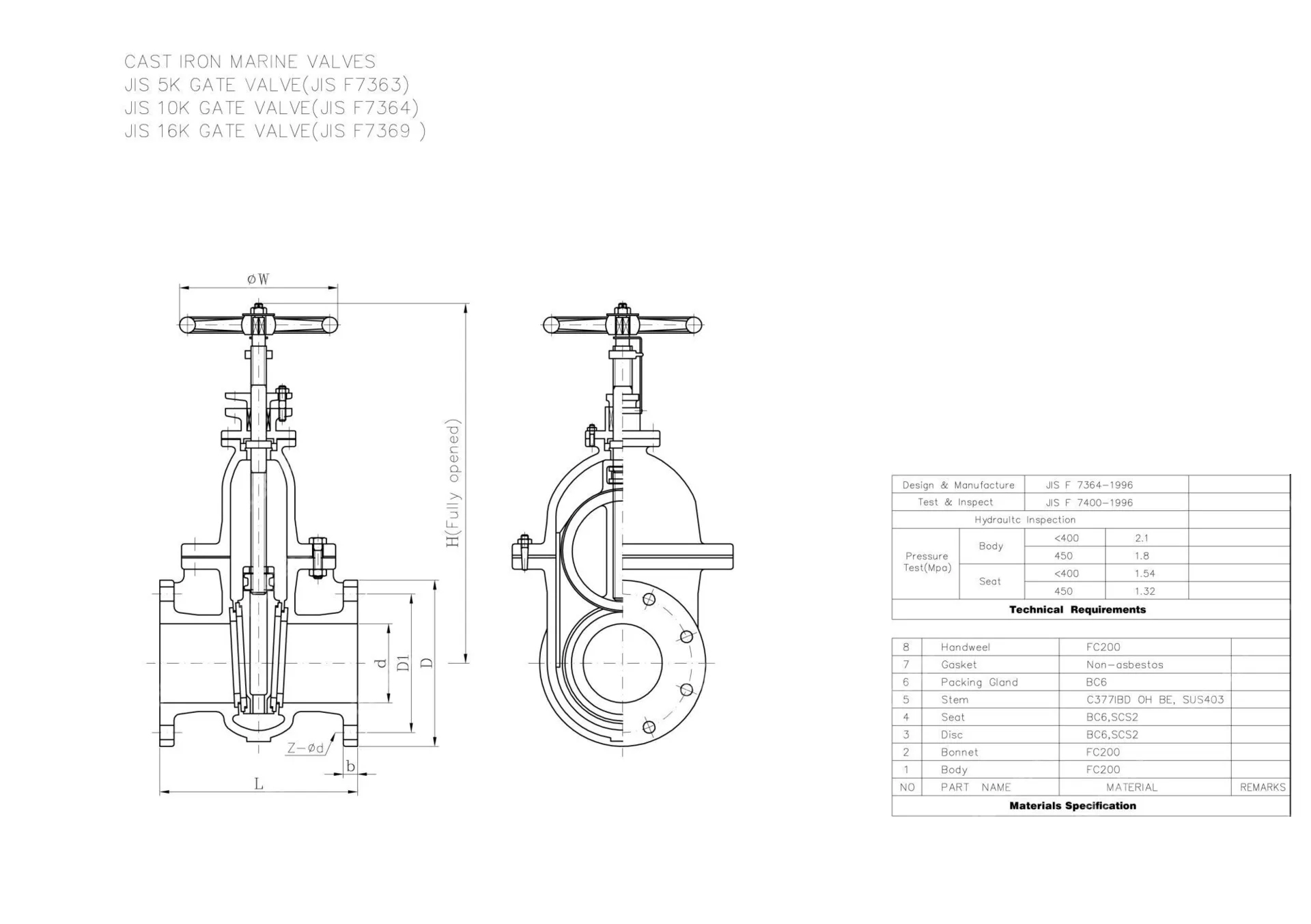

Materials of Main Parts
| NO | Part name | Material |
| 1 | Body | FC200 |
| 2 | Bonnet | FC200 |
| 3 | Disc | BC6, SCS2 |
| 4 | Seat | BC6, SCS2 |
| 5 | Stem | C377IBD OH BE, SUS403 |
| 6 | Packing Gland | BC6 |
| 7 | Gasket | Non-asbestos |
| 8 | Handweel | FC200 |
