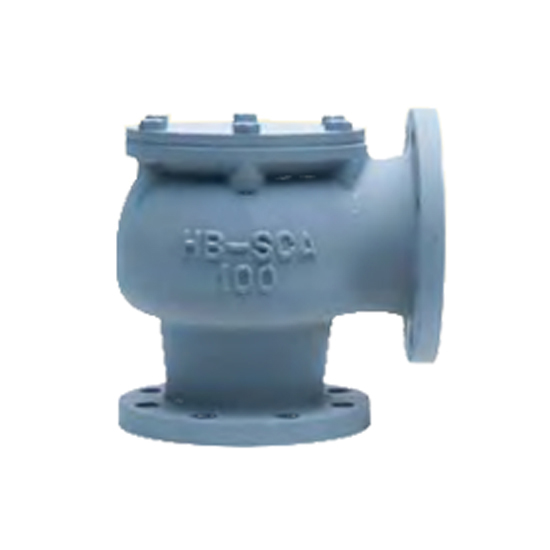

JIS F7359 Lift Check Angle Valve, JIS FC200, 80A, 5K, 3 Inch
- Product Name:
- JIS F7359 Lift Check Angle Valve
- Design Standard:
- JIS F7359
- Body Material:
- JIS FC200, Cast Iron
- Size:
- JIS 80A, 3 Inch
- Pressure:
- JIS 5K
- End Connection:
- FF Flange
Key Specifications / Features
The JIS F7359 Lift Check Angle Valve is made from cast iron JIS FC200, ensuring durability and corrosion resistance. This 3-inch, JIS 80A valve is rated for JIS 5K pressure, making it suitable for medium-pressure applications. With FF flanged end connections, it provides secure and reliable installation in piping systems.
Product Range
Port Size: 50A-250A, 2-10 Inch
Pressure Rating: JIS 5K, JIS 10K
Structure: Lift Check Angle Valve
Temperature Range: -29°C to 345°C
Body Material: Ductile Iron, Carbon Steel, Stainless Steel
Connection: FF Flange
Medium: Sea Water, Fresh Water, Oil, etc
Marine valves are critical components in controlling the flow, pressure, and direction of fluids within ship pipelines. These valves are specially designed to meet the unique challenges and environmental conditions encountered in maritime applications. Their primary role is to regulate or stop the flow of various media (water, fuel, oil, etc.) in pipelines, ensuring the safety, efficiency, and smooth operation of onboard systems.

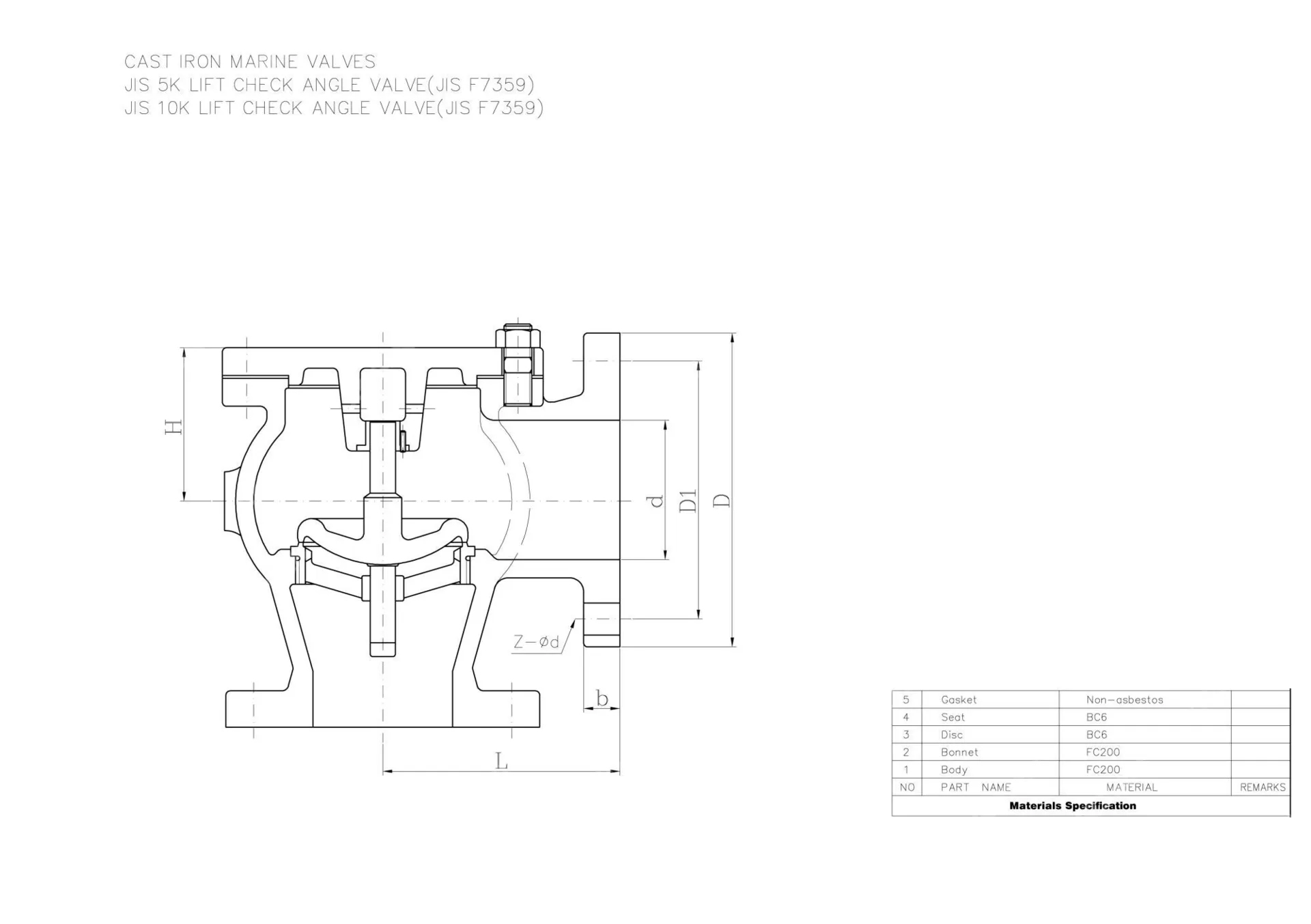

Materials of Main Parts
| NO | Part Name | Material |
| 1 | Body | FC200 |
| 2 | Bonnet | FC200 |
| 3 | Disc | BC6 |
| 4 | Seat | BC6 |
| 5 | Gasket | Non-asbestos |
