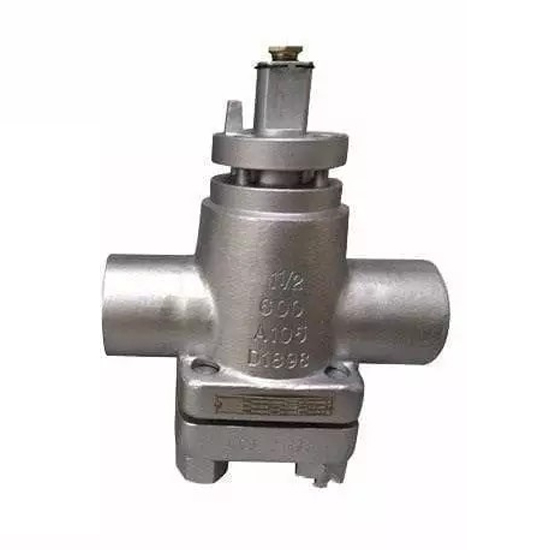

Pressure Balanced Lubricated Plug Valve, ASTM A105, 1-1/2 IN, CL600
- Product Name:
- Pressure Balanced Lubricated Plug Valve, Inverted
- Design Standard:
- API 599
- Body Material:
- ASTM A105
- Size:
- 1-1/2 Inch
- Pressure:
- Class 600 LB
- End Connection:
- NPT Threaded
Key Specifications / Features
The Pressure Balanced Lubricated Plug Valve, designed per API 599 and made from carbon steel ASTM A105, features a 1-1/2 inch (DN40) size with a Class 600 LB and PN100 pressure rating. It is equipped with NPT threaded ends for secure, leak-proof connections. The valve's pressure-balanced design ensures reliable sealing and smooth operation in high-pressure systems.
The NPT Threaded End Lubricated Plug Valve, also known as the Inverted Pressure Balanced Lubricated Plug Valve, can be designed to meet ANSI standards and customized according to specific customer requirements. These valves offer cost-effective, quick opening and closing with a tight, leak-proof seal. They are available with standard rectangular ports and threaded end connections (ranging from 1/2" to 4").
Technical Specifications
» Design & Manufacturer: API 599, API 6D
» Materials: ASTM A105N, A350 LF2, A182 F304, F304L, F316, F316L
» Nominal Diameter: 1/2-2 Inch (DN15-DN50)
» Nominal Pressure: Class 150-900 LB
» Face to Face: ASME B16.10
» Flange Ends: ASME B16.5
» Screwed Ends: ANSI/ASME B1.20.1 (NPT)
» Test & Inspection: API 598, API 6D
» Operation Options: Lever, Worm Gear, Electric, Pneumatic
» Medium: Water, Steam, Oil, Gas, etc.
» Temperature Range:-29°C to +150°C, -40°C to +450°C

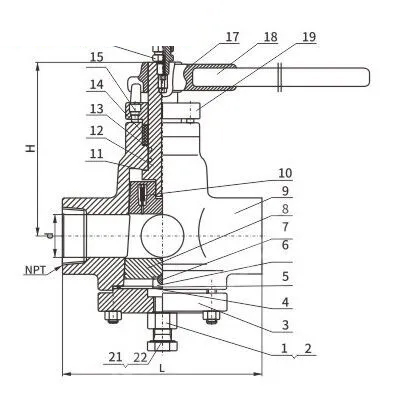

Material for Main Parts
| No | Name of Parts | Material |
| 1 | Bolt | A193 B7 |
| 2 | Nut | A194 2H |
| 3 | Bonnet | A105 |
| 4 | Matal diaphragm | SS 304 |
| 5 | Gasket | Graphite+SS 304 |
| 6 | Adjustment block | A276 410 |
| 7 | Ball | SS 304 |
| 8 | Cock | A105 |
| 9 | Body | A105 |
| 10 | Check valve | Assembly |
| 11 | Gasket | PTFE |
| 12 | Stem | A182 F6 |
