Inverted Type Plug Valve, API 6D, A216 WCB, 12 Inch, 600 LB

Key Specifications / Features

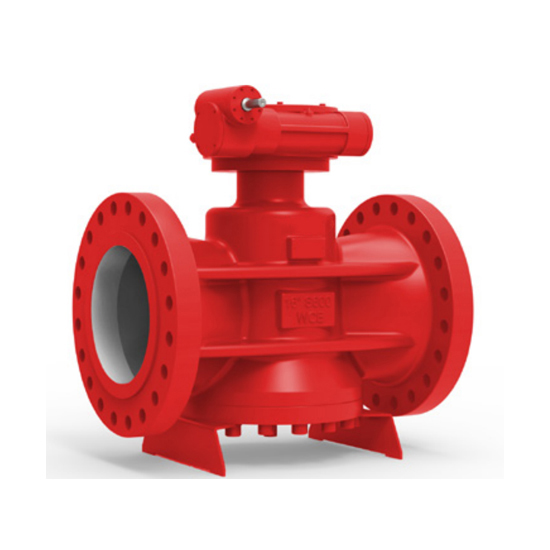

The Inverted Type Plug Valve is manufactured to meet API 6D and API 599 standards. It features a carbon steel ASTM A216 WCB body, ensuring durability and strength. With a size of 12 inches (DN300) and a pressure rating of Class 600 LB (PN100), this valve is designed for high-pressure applications. It has RF (Raised Face) flanged ends for secure connections and is operated by a worm gear for smooth and reliable control.

We manufacture high-quality Lubricated Plug Valves, offering competitive pricing and custom design options based on ANSI standards. These valves are widely used in industries such as petroleum, chemicals, pharmaceuticals, fertilizers, and power. Our Flange End Lubricated Plug Valves can be tailored to meet specific customer requirements. Also known as Pressure Balance Lubricated Plug Valves, they are designed to provide reliable sealing and smooth operation in various applications.

Technical Specifications

» Nominal Diameter: NPS 1/2-16 Inch (DN15-DN400)
» Design Pressure: Class 150-1500 LB (PN20-PN260)
» Material: ASTM A216 WCB, WCC, A217 WC6, WC9, C5, A352 LCB, LCC, A351 CF8, CF8M, CF3, CF3M, CF8C, CN3MN, CN7M, A890 4A (CD3MN), 5A (CE3MN), 6A (CD3MWCuN), B148 C95800, C95500
» Design Standard: API 6D, API 599
» Face to Face: ASME B16.10
» Test Standard: API 598, ISO 5208
» Connection End: RF, RTJ, BW
» Design Temperature: -46°C to +300°C
» Applicable Medium: Water, steam, oil, gas, etc.
» Operation: Lever, worm gear, electric, pneumatic
» Applications: Petrochemical, chemical, natural gas, LPG, HVAC, food, and pharmaceuticals
» Key Functions
   Function 1: Optional bore patterns: Venturi, Regular, Short, Standard
   Function 2: Metal-to-metal seated design
   Function 3: Injection grease sealed design (for stem and seats)
   Function 4: Fire-safe design

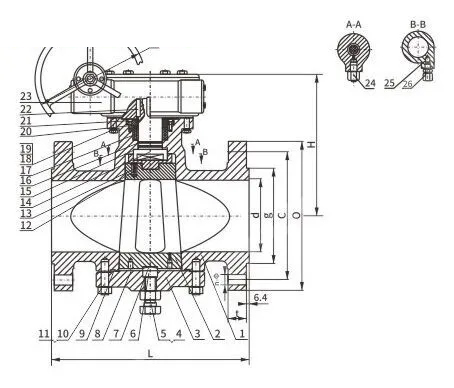

Product Characteristics

The inverted pressure balance plug valve design ensures smooth and balanced operation under pressure from different directions. It features special sealing structures that effectively prevent fluid leakage when the valve is closed, ensuring reliable and secure performance in various applications.
