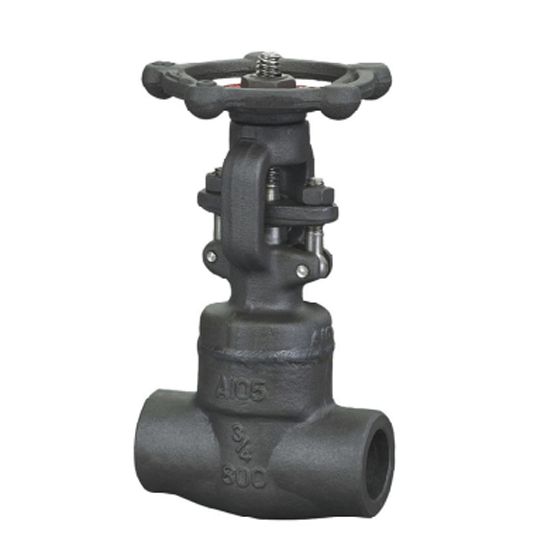

Welded Bonnet Globe Valve, API 602, ASTM A105, 3/4 IN, CL800

Key Specifications / Features

The Welded Bonnet Globe Valve, manufactured to API 602 and ASME B16.34 standards, features a forged carbon steel ASTM A105 body for strength and durability. This 3/4-inch (DN20) valve is rated for Class 800 LB and PN130 pressure classes, offering reliable performance in high-pressure systems. It is equipped with FNPT threaded ends for secure connections.

Forged Steel Globe Valves are meticulously designed and manufactured in compliance with international standards, including API 602, ASME B16.34, and DIN 3202, or their equivalents. These valves feature a compact yet robust design, making them ideal for high-pressure and high-temperature applications.

Technical Specifications

» Size Range: NPS 1/2-2 Inch (DN15-DN50)
» Design Pressure: Class 150-2500 LB (PN10-PN420)
» Materials: Carbon Steel, Alloy Steel, Stainless Steel, Duplex Steel, and others such as ASTM A105N, A350 LF2, A182 F11, F22, F304, F304L, F316, F316L
» Trim Materials: 13% Cr, ASTM A182 F11, F22, SS 304, SS 304L, SS 316, SS 316L, etc.
» End Connections: SW, FNPT, BW, RF, RTJ, Grooved
» Design and Manufacture: ASME B16.34, API 602
» Face-to-Face (End-to-End): ANSI B16.10
» Flanged Connection: ANSI B16.5
» Test and Inspection: API 598, API 6D
» Butt-Welded End: ANSI B16.5
» Threaded Ends: ASME B1.20.1
» Socket-Weld Ends: ASME B16.11
» Temperature Range: -29°C to 595°C
» Medium: Water, gas, oil, etc.

Key Product Features

» Solid CoCr Alloy Wedge (Optional): Reduces friction for extended service life.
» Precompressed Packing Rings: Sealed to 4000 psi to ensure high-integrity performance.
» Welded Bonnet Design: Threaded and torqued to precise values, then strength-welded for double protection against leakage.
» Fully Guided Wedge: Minimizes wear on seating surfaces, enhancing durability.
» Optional Features: Includes double packing, leak-off connections, live-loading, and packing blowout for easy maintenance and packing removal.
» Corrosion Resistance: Forged steel materials undergo precise processing to enhance their resistance to corrosion, allowing the valves to perform reliably in corrosive environments and extend their service life.
» Compact and Efficient Design: Forged steel globe valves are engineered for compactness, requiring less space for installation, making them ideal for applications with spatial constraints.
