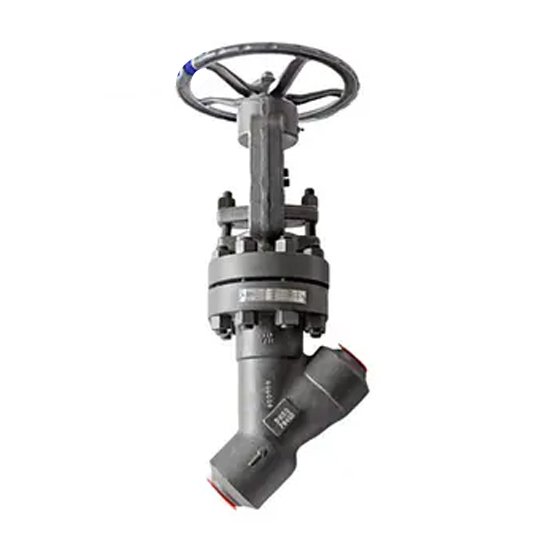

ASTM A105N Y Globe Valve, API 602, DN50, PN400, 2 Inch, BB

Key Specifications / Features

The ASTM A105N Y Globe Valve is a forged carbon steel valve designed to API 602 standards for durability and performance. With a DN50 (2-inch) size, Class 2500 LB (PN400) pressure rating, bolted bonnet, and butt-welded ends, it ensures secure, leak-free operation. Ideal for high-pressure industrial applications, this valve offers precise flow control and reliability in demanding environments.

Forged Steel Globe Valves are precision-engineered to meet international standards such as API 602, ASME B16.34, and DIN 3202 (or equivalent). These valves feature a compact yet robust design, making them ideal for high-pressure and high-temperature applications. The solid CoCr alloy wedge (optional) reduces friction, extending the valve's service life.
The packing rings are precompressed to 4000 psi, ensuring a high-integrity seal. For welded bonnet valves, the bonnet is threaded in and torqued to a specified value, with the body-bonnet joint strength-welded for double protection against leakage. This dual-layer protection includes the body, bonnet threads, and the welded joint.
The fully guided wedge design minimizes wear on seating surfaces, enhancing valve longevity. Optional features include double packing, a leak-off connection, live-loading, and a packing blowout for easy removal of old packing, further ensuring reliable and efficient valve performance.

Technical Specifications

» Size Range: NPS 1/2-2 Inch (DN15-DN50)
» Design Pressure: Class 150-2500 LB (PN10-PN420)
» Materials: Carbon Steel, Alloy Steel, Stainless Steel, Duplex Steel, and others such as ASTM A105N, A350 LF2, A182 F11, F22, F304, F304L, F316, F316L
» Trim Materials: 13% Cr, ASTM A182 F11, F22, SS 304, SS 304L, SS 316, SS 316L, etc.
» End Connections: SW, FNPT, BW, RF, RTJ, Grooved
» Design and Manufacture: ASME B16.34, API 602
» Face-to-Face (End-to-End): ANSI B16.10
» Flanged Connection: ANSI B16.5
» Test and Inspection: API 598, API 6D
» Butt-Welded End: ANSI B16.5
» Threaded Ends: ASME B1.20.1
» Socket-Weld Ends: ASME B16.11
» Temperature Range: -29°C to 595°C
» Medium: Water, gas, oil, etc.

Product Features

» Corrosion Resistance: After fine processing, forged steel materials offer excellent corrosion resistance, making them ideal for use with various corrosive media and extending the service life of the valve.
» Compact Design: Forged steel globe valves are typically designed to be more compact, occupying less space and making installation easier. They are especially well-suited for applications with limited space.
