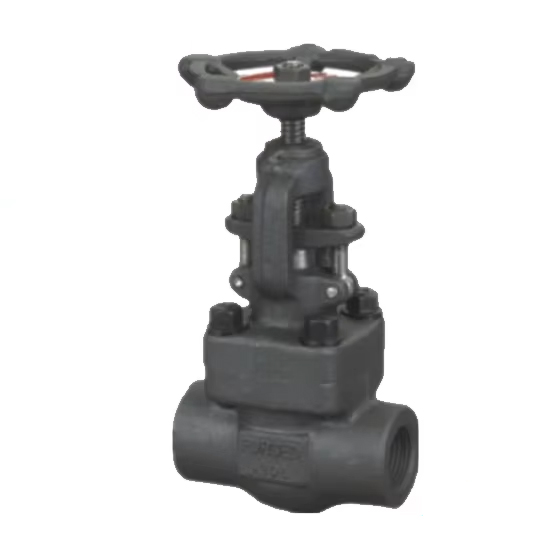

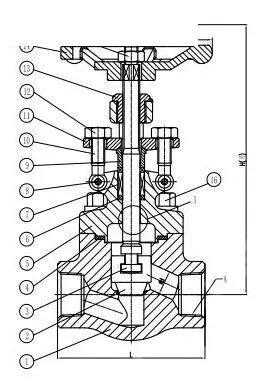

ASTM A105 Globe Valve, API 602, 1 IN, 800 LB, BB, OS&Y, FNPT

Key Specifications / Features

This ASTM A105 Globe Valve, manufactured to API 602 standards, features a forged carbon steel body for durability and strength. With a 1-inch size, Class 800 LB pressure rating, and FNPT ends, it includes a bolted bonnet, bolted gland, and OS&Y structure for reliable operation and easy maintenance in high-pressure industrial applications.

Forged Steel Globe Valves are built to meet international standards like API 602, ASME B16.34, and DIN3202, ensuring durability for high-pressure and high-temperature applications. The design is compact yet robust, with an optional solid CoCr alloy wedge for low friction and a long lifespan. The packing rings are pre-compressed to 4000 psi, creating a strong, reliable seal. For welded bonnet valves, the bonnet is securely threaded and torqued to a specific value, with the body-bonnet joint strength-welded for added leak protection. The fully guided wedge minimizes wear on seating surfaces. Optional features include double packing, leak-off connection, live-loading, and a packing blowout for easy packing removal.

Technical Specifications

» Size Range: NPS 1/2-2 Inch (DN15-DN50)
» Design Pressure: Class 150-2500 LB (PN10-PN420)
» Materials: Carbon Steel, Alloy Steel, Stainless Steel, Duplex Steel, and other materials such as ASTM A105N, A350 LF2, A182 F11, F22, F304, F304L, F316, F316L
» Trim Materials: 13% Cr, ASTM A182 F11, F22, SS 304, SS 304L, SS 316, SS 316L, etc.
» End Connections: SW, FNPT, BW, RF, RTJ, Grooved
» Design and Manufacture: ASME B16.34, API 602
» Face-to-Face (End-to-End): ANSI B16.10
» Flanged Connection: ANSI B16.5
» Test and Inspection: API 598, API 6D
» Butt-Welded End: ANSI B16.5
» Threaded Ends: ASME B1.20.1
» Socket-Weld Ends: ASME B16.11
» Temperature Range: -29°C to 595°C
» Medium: Water, gas, oil, etc.

Product Features

» Corrosion Resistance: After fine processing, forged steel materials offer excellent corrosion resistance, making the valves suitable for a wide range of corrosive media and extending their service life.
» Reduced Bore Design: Features a reduced bore for high flow and low pressure drop, with a full bore option available.
» Bolted Bonnet: Made from high-quality forging, the bolted bonnet ensures metal-to-metal surface contact for automatic gasket compression control, preventing joint over-stressing.
» Graphite Packing: Equipped with graphite packing rings containing built-in corrosion inhibitors, providing leak-tight sealing under both high and low pressures and temperatures.
