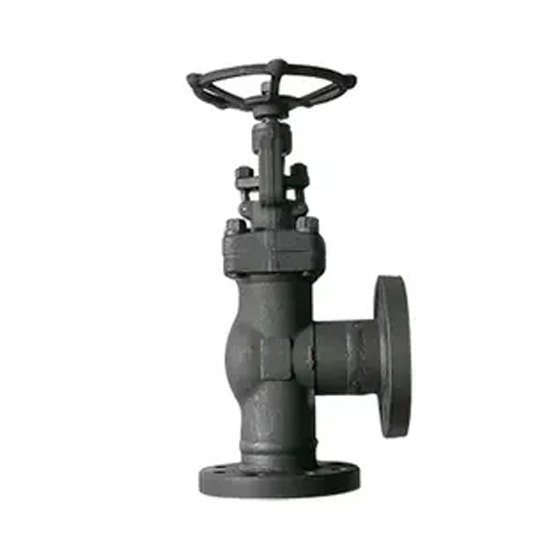

API 602 Angle Globe Valves, ASTM A105N, 2 Inch, CL600 LB, RF

Key Specifications / Features

The API 602 Angle Globe Valves from this manufacturer are designed for precise control and reliability. These valves feature a forged carbon steel body made from ASTM A105N material, ensuring durability and strength. With a 2-inch (DN50) diameter and a Pressure Class 600 LB (PN100) rating, they offer robust performance under high-pressure conditions. The valves are equipped with raised face (RF) flanged ends for secure and leak-tight connections.

Forged Steel Globe Valves are precisely engineered and manufactured in accordance with international standards such as API 602, ASME B16.34, DIN 3202, or their equivalents. These valves feature a compact yet exceptionally durable design, ideal for high-pressure and high-temperature applications. An optional solid CoCr alloy wedge ensures low friction and extended service life. Packing rings are pre-compressed to 4000 psi, providing a reliable, high-integrity seal.
In welded bonnet designs, the bonnet is threaded into the body and torqued to a specified value, then strength-welded to the body, offering dual leakage protection through both threaded and welded joints. A fully guided wedge minimizes wear on seating surfaces, enhancing durability. Optional features include double packing, leak-off connections, live-loading, and a packing blowout mechanism for easy removal and replacement of packing materials.

Technical Specification

» Size Range: NPS 1/2-2 Inch (DN15-DN50)
» Design Pressure: Class 150-2500 LB (PN10-PN420)
» Materials: Carbon Steel, Alloy Steel, Stainless Steel, Duplex Steel, and others such as ASTM A105N, A350 LF2, A182 F11, F22, F304, F304L, F316, F316L
» Trim Materials: 13% Cr, ASTM A182 F11, F22, SS 304, SS 304L, SS 316, SS 316L, etc.
» End Connections: SW, FNPT, BW, RF, RTJ, Grooved
» Design and Manufacture: ASME B16.34, API 602
» Face-to-Face (End-to-End): ANSI B16.10
» Flanged Connection: ANSI B16.5
» Test and Inspection: API 598, API 6D
» Butt-Welded End: ANSI B16.5
» Threaded Ends: ASME B1.20.1
» Socket-Weld Ends: ASME B16.11

Product Features

» After precision machining, forged steel materials exhibit excellent corrosion resistance, making them suitable for a wide range of corrosive media and effectively extending the valve's service life.
» Forged steel globe valves are typically compact in design, with reduced volume and footprint. This makes them easy to install and operate, particularly well-suited for applications where space is limited.
