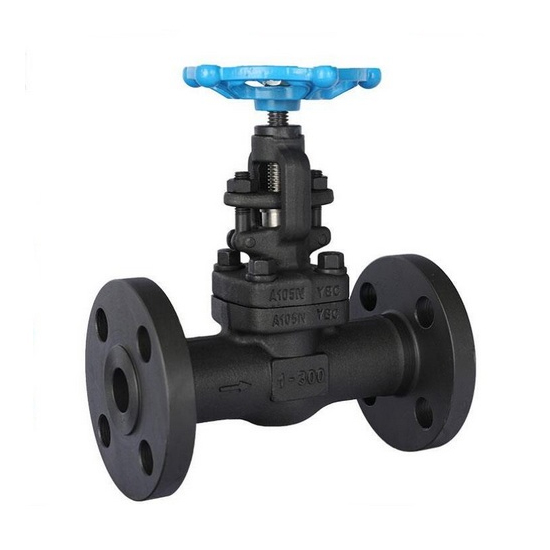

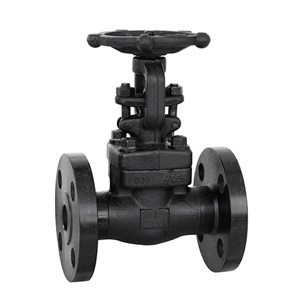

Bolted Bonnet Gate Valve, API 602, A105N, 1 Inch, CL300, RF

Key Specifications / Features

The China Bolted Bonnet Gate Valve Supplier offers high-quality gate valves designed in accordance with API 602 and ASTM A105N standards. These valves feature a carbon steel body, ensuring durability and reliability. They are available in a standard size of 1 inch (DN25) and are rated for Pressure Class 300 LB and PN50, making them suitable for a wide range of industrial applications. The valves come with raised face (RF) flanged ends for secure and leak-free connections.

Forged Steel Gate Valves are engineered and manufactured in strict accordance with international standards such as API 602, ASME B16.34, DIN 3202, or equivalent. These valves feature a compact yet robust design, ideal for high-pressure and high-temperature applications. An optional solid CoCr alloy wedge ensures low friction and extended service life. Packing rings are precompressed to 4000 psi, providing a reliable and high-integrity seal. For welded bonnet types, the bonnet is threaded and torqued to a precise value, then strength-welded to the body, delivering double protection against leakage through the threads and weld joint. A fully guided wedge minimizes wear on seating surfaces. Optional features include double packing, leak-off connections, live-loading, and a packing blowout mechanism for easy removal of old packing.

Technical Specification

» Type: Forged Steel Gate Valve
» Size Range: 1/2 inch to 2 inches for forged items
» Design Pressure: Class 150-2500 LB (PN10-PN420)
» Materials: Carbon Steel, Alloy Steel, Stainless Steel, Duplex Steel, and others
» Trim Materials: 13%Cr, ASTM A182 F11, F22, SS 304, SS 304L, SS 316, SS 316L, and other special materials
» End Connections: SW, FNPT, BW, RF, RTJ, Grooved
» Design and Manufacture: ASME B16.34, API 602
» Face to Face (End to End): ANSI B16.10
» Flanged Connection: ANSI B16.5
» Test and Inspection: API 598, API 6D
» Butt Welded End: ANSI B16.9
» Threaded Ends: ASME B1.20.1
» Socket-Weld Ends: ASME B16.11

Product Features

» OS&Y, Outside Stem and Yoke
» Metal-sealed (API Trim #1, #5, #8, #10, etc.)
» Optional Locking Device or Stem Extension
» Optional Bolted Bonnet, Welded Bonnet or Pressure Sealed Bonnet
» Optional Direct Mounting to ISO 5211
» Full Bore or Reduce Port
