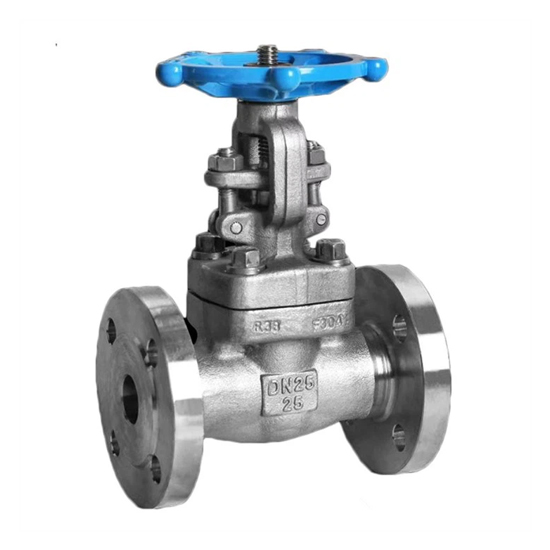

ASTM A182 F304 Gate Valve, API 602, DN25, PN25, Solid Wedge

Key Specifications / Features

The ASTM A182 F304 Gate Valve, featuring a forged stainless steel body and solid wedge design, is built to API 602 standards. This 1-inch (DN25) valve supports Class 300 LB and PN50 pressure ratings with RF (Raised Face) ends for easy installation. Handwheel-operated for manual control, it ensures precise shut-off and reliable performance in a range of industrial applications.

Forged Steel Gate Valves are engineered and manufactured in compliance with international standards such as API 602, ASME B16.34, and DIN 3202, ensuring reliability and performance in high-pressure and high-temperature applications. These valves feature a compact, yet extremely durable design. The solid CoCr alloy wedge (optional) offers low friction and extended service life.
The packing rings are pre-compressed to 4000 psi, ensuring a high-integrity seal. For welded bonnet valves, the bonnet is threaded and torqued to a precise value, while the body-to-bonnet joint is strength-welded, providing double protection against leakage (body, bonnet threads, and strength weld). A fully guided wedge minimizes wear on seating surfaces, ensuring long-lasting performance. Optional designs are available with features like double packing, leak-off connections, live-loading, and a packing blowout for easy removal of old packing.

Technical Specification

» Size Range: 1/2-2 Inch (DN15-DN50) (for Forged Items)
» Design Pressure: Class 150-2500 LB (PN10-PN420)
» Materials:
   Carbon Steel, Alloy Steel, Stainless Steel, Duplex Steel, etc
   ASTM A105N, A350 LF2, A182 F11, F22, F304, F304L, F316, F316L
» Trim Materials: 13%Cr, ASTM A182 F11, F22, SS 304, SS 304L, SS 316, SS 316L, and other specials
» End Connections: SW, FNPT, BW, RF, RTJ, Grooved
» Design and Manufacture: ASME B16.34, API 602
» Face to Face (End to End): ANSI B16.10
» Flanged Connection: ANSI B16.5
» Test and Inspection: API 598, API 6D
» Butt Welded Ends: ANSI B16.5
» Threaded Ends: ASME B1.20.1
» Socket-Weld Ends: ASME B16.11
» Temperature Range: -29°C to 595°C
» Medium: Water, Gas, Oil, etc.

Product Features

» OS&Y (Outside Stem and Yoke) design for enhanced durability and ease of operation.
» Metal-sealed options available (API Trim #1, #5, #8, #10, etc.) for reliable sealing under various conditions.
» Optional Locking Device or Stem Extension for added security and customization.
» Optional Bonnet Types: Choose from bolted, welded, or pressure-sealed bonnet configurations.
» Direct Mounting available to ISO 5211 for convenient actuator installation.
» Full Bore or Reduced Port options to meet specific flow requirements.
