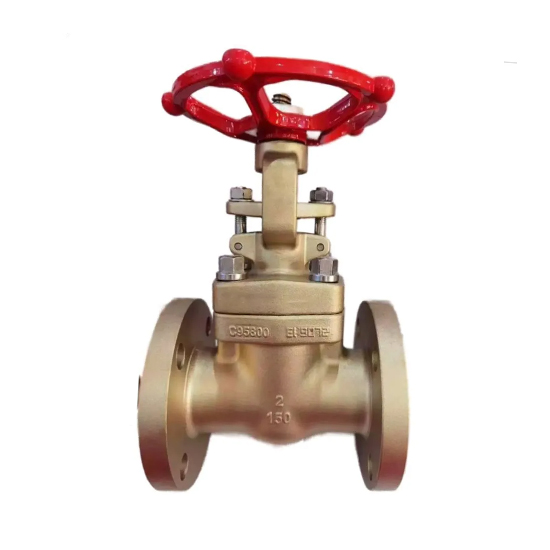

Al-Bronze Gate Valve, API 602, ASTM B148 C95800, 2 IN, CL150

Key Specifications / Features

Our China Aluminum Bronze Gate Valve Supplier offers a high-quality gate valve designed to meet stringent industrial standards. This valve adheres to API 602 and ASTM B148 C95800 specifications, featuring a 2-inch (DN50) size and a pressure rating of 150 LB (PN20). It is equipped with raised face (RF) flanged ends for secure and reliable connections. The manual operation ensures ease of use and control, making it suitable for a variety of applications.

Aluminum bronze gate valves are widely used in marine engineering, environmental protection projects, and applications involving corrosive oxidative media. Designed for harsh conditions, they offer outstanding corrosion resistance, particularly in marine and offshore environments, making them ideal for ship components, seawater pipelines, and other systems requiring long-term durability. These valves serve as shut-off devices, and when fully opened, they provide a straight-through flow path, ensuring minimal pressure loss during operation.

Technical Specification

» Product: Aluminium Bronze Gate Valve
» Size Range: NPS 1/2-4 Inch (DN15-DN100)
» Design Pressure: Class 150 LB (PN10, PN16)
» Materials: Aluminum Bronze ASTM B148 C95400, C95500, C95800, ASTM B150 C63000, C63200
» End Connections: FNPT, Integral Flanged Ends
» Design and Manufacture: ASME B16.34, API 602, API 600
» Face to Face (End to End): ANSI B16.10
» Flanged Connection: ANSI B16.5
» Test and Inspection: API 598, API 6D
» Threaded Ends: ASME B1.20.1

Product Features

» OS&Y, Outside Stem and Yoke
» Optional Locking Device or Stem Extension
» Optional Bolted Bonnet
» Optional Direct Mounting to ISO 5211
» Full Bore or Reduce Port
» Metal-sealed
