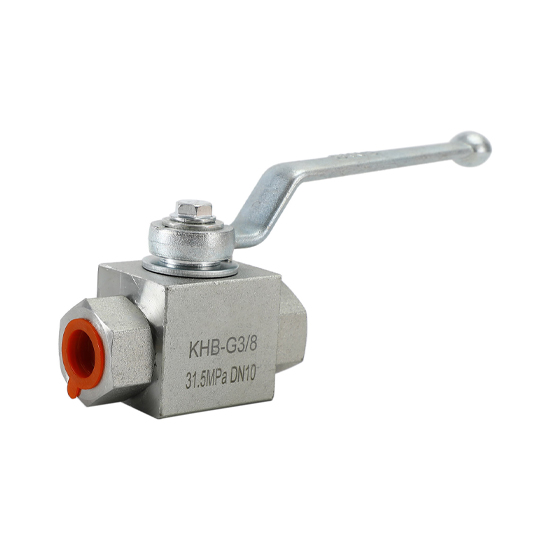

Hydraulic Ball Valve, ASME B16.34, SS 316L, DN10, PN500, BSP
- Product Name:
- Hydraulic Ball Valve
- Design Standard:
- ASME B16.34
- Body Material:
- Stainless Steel SS 316L
- Size:
- DN10, 3/8 Inch
- Pressure:
- PN500
- End Connection:
- BSP Threaded
- Operation:
- Lever
- Temperature Range:
- -40°C to 121°C
- Medium:
- hydraulic Oil or others
Key Specifications / Features
The Hydraulic Ball Valve Supplier in China offers a high-quality ball valve designed in accordance with ASME B16.34 standards. This valve is constructed from stainless steel SS 316L, ensuring excellent corrosion resistance and durability. With a nominal diameter of DN10 (3/8 inch) and a pressure rating of PN500, it is suitable for high-pressure applications. The valve features BSP (British Standard Pipe) threaded ends for easy installation and is operated via a lever for quick and reliable control.
The KHB series of hydraulic high-pressure ball valves are designed for applications requiring a working pressure exceeding 6000 PSI. These valves operate by rotating 90 degrees around the ball core to open or close. They are forged under high pressure, ensuring a robust and durable body. The valves feature a CFW seal as the primary sealing component, with initial sealing provided by a stainless steel disc spring gasket. As the medium pressure increases, the sealing performance of the packing is further enhanced, resulting in exceptional self-sealing capabilities. All components are treated for high strength, and each valve undergoes non-destructive testing and pressure testing to ensure safety and compliance. These valves are suitable for ultra-high pressure liquids, gases, or their mixtures, making them ideal for industries such as ultra-high pressure test benches, pneumatic pumps, hydraulic pumps, and deep-sea detectors. They offer reliable performance and ease of use.
Technical Specification
» Product: KHB series hydraulic Ball Valve
» Size Range: 1/8-4 Inch (Forged Items)
» Temperature Range: -40°F to 250°F (-40°C to 121°C)
» Pressure Rating: 6000-20000 PSI
» Materials: Carbon Steel, Alloy Steel, Stainless Steel, Duplex Steel & Other
» Ends Connections: BSP and NPT thread
» Design and Manufacture: ASME B16.34, API 6D
» Face to face (end to end): ANSI B16.10
» Test and Inspection: API 598
» Threaded Ends to ASME B1.20.1

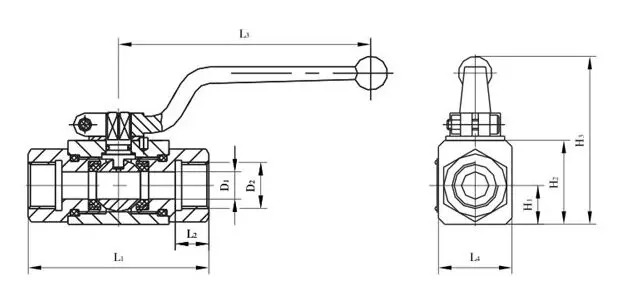

Structure Diagram
Dimensions (mm)
| Model | D1 | D2 | L1 | L2 | L3 | L4 | H1 | H2 | H3 |
| KHB -J10N | Ф10 | M18×1.5 | 78 | 14 | 105 | 32 | 16 | 36 | 76 |
| KHB -J15N | Ф15 | M22×1.5 | 86 | 16 | 147 | 38 | 19 | 45 | 80 |
| KHB -J20N | Ф20 | M27×2 | 108 | 18 | 185 | 48 | 25 | 55 | 101 |
| KHB -J25N | Ф25 | M33×2 | 116 | 20 | 185 | 57 | 28.5 | 64 | 111 |
| KHB -J32N | Ф32 | M42×2 | 136 | 22 | 240 | 75 | 37.5 | 84 | 134 |
| KHB -J40N | Ф40 | M48×2 | 148 | 24 | 240 | 85 | 42.5 | 95 | 165 |
| KHB -J50N | Ф50 | M64×2 | 180 | 26 | 240 | 104 | 52 | 112.5 | 180 |
