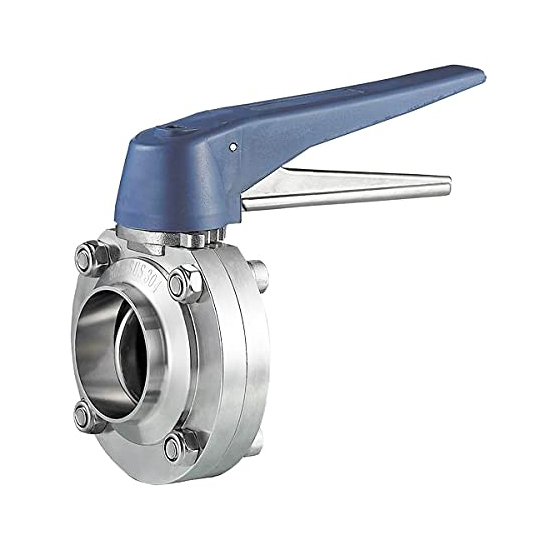

Sanitary Butterfly Valve, SUS304, SUS316L, 1-6 IN, 150 LB
- Product Name:
- Sanitary Butterfly Valve
- Application:
- Ideal for Food & Beverage, Pharmaceuticals, Dairy, Beer Production, and Fine Chemicals
- Materials:
- Premium Stainless Steel (SUS304, SUS316L, etc.)
- Features:
- Exceptional sealing performance and long service life
- Working Pressure:
- 0.6 MPa, 1.0 MPa, 1.6 MPa, PN6-PN16, Class 150 LB
- Nominal Sizes:
- 1-6 Inch, DN15-DN150
- Operating Temperature:
- -10°C to 100°C
- Connection Type:
- Welding, Quick Installation, Threaded, Clamp, and others
- Sealing Materials:
- EPDM, NBR, PTFE options
- Applicable Media:
- Liquids, Gases, Oils, and Corrosive Chemicals
- Actuation Methods:
- Manual, Worm Gear, Pneumatic, Electric
- Standards Compliance:
- ISO, DIN, IDF, SMS, 3A, and more
- Packaging:
- Cardboard Box, Wooden Box, or Plastic Packaging
- Quality Assurance:
- Precision polished both internally and externally using high-end equipment, meeting stringent surface finish requirements
Key Specifications / Features
The Sanitary Butterfly Valve is made from premium stainless steel materials like SUS304 and SUS316L, ensuring high corrosion resistance and durability. Available in sizes from 1-6 inches (DN15-DN150) and pressure ratings of PN6-PN16, it is manufactured according to ISO, DIN, and other industry standards. This valve is designed for hygienic applications in the food, beverage, pharmaceutical, and cosmetic industries.
Sanitary butterfly valves are designed with standard electronic polishing and a smooth surface to ensure cleanliness and prevent media accumulation, minimizing the risk of contamination. The quick disassembly feature allows for easy valve opening and maintenance, reducing process downtime. These valves, available in automatic or manual operation, are widely used in industries such as beer, beverages, dairy, juice, pharmaceuticals, and biotechnology.
