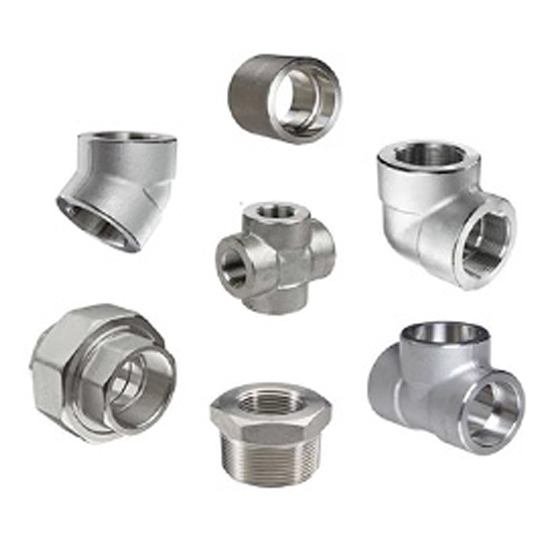

Forged Steel Pipe Fittings, 1/8-4 IN, 3000, 6000, 9000 LB
- Product Name:
- Forged Pipe Fittings
- Type:
- Elbow, Tee, Plug, Cross, Coupling, Union, Nipple, Weldolet
- Pressure:
- Class 3000 LB, 6000 LB, 9000 LB
- Size Range:
- 1/8-4 Inch (DN6-DN100)
- Materials:
- Carbon Steel, Alloy Steel, Stainless Steel, Duplex Steel, Super Duplex Steel
- Connection Type:
- Socket-welding, NPT Thread
- Service Options:
- Welding, Fabricated, Customized
Key Specifications / Features
The Forged Steel Pipe Fittings offer a wide range of high-quality fittings designed for secure and efficient piping systems. Available in sizes from 1/8 to 4 inches, these fittings include elbows, tees, plugs, crosses, couplings, unions, nipples, and weldolets. They are available in pressure classes 3000, 6000, and 9000 LB. Made from durable materials including carbon steel (CS), stainless steel (SS), alloy steel (AS), duplex stainless steel (DSS), and super duplex stainless steel (SDSS), these fittings provide excellent corrosion resistance and long-lasting reliability in industrial applications.
Product Range
» Product Type: Threaded Forged Pipe Fittings, Socket Welded Forged Pipe Fittings
» Product Categories:
90° Elbow
45° Elbow
Straight Tee
Reducing Tee
Double-End Pipe Collar
Single-End Pipe Collar
Reducer Collar
Threaded Pipe Support
Socket Welded Pipe Support
Pipe Cap
45° Chamfered Pipe Support
Movable Joint
Union
» Size Range: Seamless, DN15–DN100 (1/2-4 Inch)
» Pressure Rating: Class 3000–9000 LB
Manufacturing Standards
» GB/T 14383
» SH 3410
» HG 21634
» ASME/ANSI B16.11
» JIS B 2316
» DIN
» Other standards available upon request
» Can be produced based on non-standard, customized drawings
Material Grades
| Nickel Alloy | ASTM / ASME B/SB 564 UNS N02200 (NICKEL 200), UNS N04400 (MONEL 400), UNS N08825 INCOLOY (825), UNS N06600 (INCONEL 600), UNS 6601 (INCONEL 601), UNS N06625 (INCONEL 625), UNS N010276 ( HASTELLOY C 276), ASTM / ASME B/SB 160 UNS N02201 (NICKEL 201) ASTM / ASME B/SB 472 UNS N08020 ( ALLOY20 / 20CB3) |
| Copper Alloy | ASTM / ASME B/SB 151 UNS NO. 70600, 71500, C 70600 ( CU -NI- 90/10), C 71500 ( CU -NI- 70/30) |
| Stainless Steel | ASTM / ASME A/SA 182 F 304, 304L, 304H, 309H, 310H, 316, 316H, 316L, 316 LN, 317, 317L, 321, 321H, 347, 347 H. |
| Duplex and Super Duplex | ASTM / ASME A/SA 182 F44, F45, F51, F53, F55, F60, F61. |
| Carbon Steel | ASTM / ASME A/SA 105（N） |
| Low Temp Carbon Steel | ASTM / ASME A/SA 350 LF 2. |
| High Yield Carbon Steel | ASTM / ASME A/SA694 F52 F56 F60, F65, F70 |
| Alloy Steel | ASTM / ASME A182 GR F5, F9, F11, F12, F22, F91. |
| Titanium | ASME ASTM SB/B381 Grade 2, Grade 5, Grade 7 |
