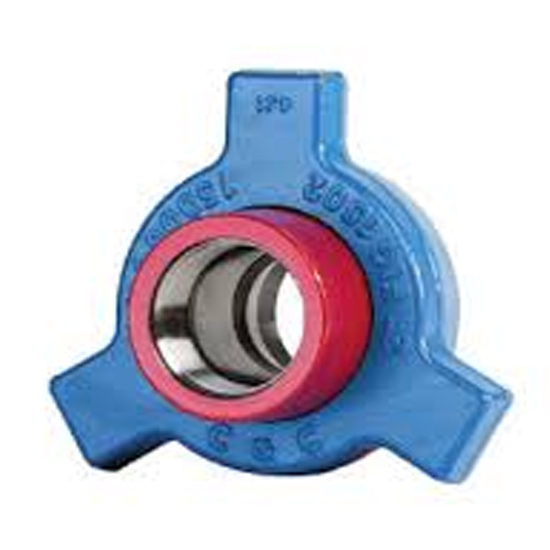

FIG 1502 Hammer Union, 1-5 IN, 15000 PSI NSCWP, BW, Threaded

Key Specifications / Features

The Figure 1502 Hammer Union is a robust fluid connection solution designed for standard service applications. It is available in sizes ranging from 1 to 5 inches and can withstand a maximum working pressure of 15,000 PSI (NSCWP). The hammer union features threaded or butt weld ends, providing versatility in installation options. It is equipped with a BUNA-N lip type seal ring, ensuring reliable sealing performance.

The Hammer Union joint is a widely used pipeline connector known for its ease of installation and disassembly. This fitting enables the connection of two pipes with a simple separation process for maintenance, without the need to move the pipes. The union consists of three components: threaded head, ball head, and locking cap. It features various sealing surfaces, including flat, spherical, and conical surfaces, all designed to ensure a secure connection. Hammer unions offer multiple connection methods, such as butt welding, socket welding, and threading.

Product Features

» High-Pressure Performance: Designed for mud tank connections without the need for flanged connections.
» Constructed for Durability: Made from high-strength steel, featuring precisely manufactured ball-cone (male-to-female) seats for secure connections.
» 15000 PSI NSCWP Rating: Suitable for high-pressure applications.
» Innovative Sealing: Equipped with a lip-type seal ring to induce turbulence and enhance the sealing performance.
» Versatile Connections: Available with butt weld connections for robust and leak-proof joints.
» Easy Maintenance: The union can be easily disassembled for maintenance without disturbing the pipes.
