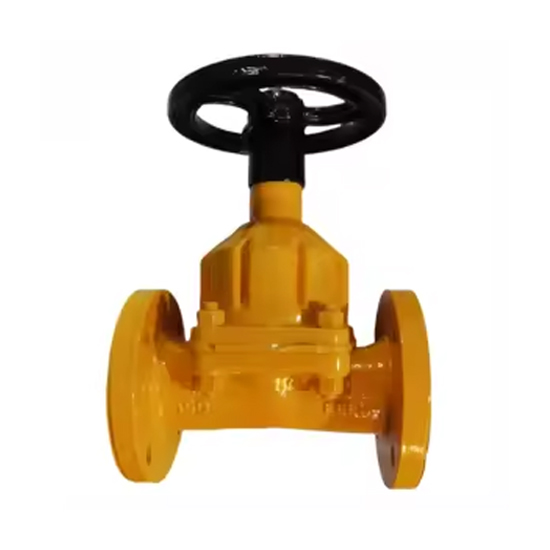

ASTM A216 WCB Diaphragm Valve, BS 5156, 6 IN, Fluorine Lined
- Product Name:
- ASTM A216 WCB Diaphragm Valve
- Type:
- Weir Type Diaphragm Valve
- Design Standard:
- BS 5156, MSS SP-88
- Body Material:
- ASTM A216 WCB
- Size:
- 6 Inch, DN150
- Pressure:
- Class 150 LB, PN20
- End Connection:
- RF
- Lining Material:
- Fluorine Lined
Key Specifications / Features
The ASTM A216 WCB Diaphragm Valve, designed as a Weir type and manufactured in compliance with BS 5156 and MSS SP-88 standards, features a carbon steel body with a fluorine lining for enhanced corrosion resistance. With a 6-inch (DN150) size, Class 150 LB (PN20) pressure rating, and RF ends for secure connections, this valve is ideal for handling aggressive fluids in industries such as chemical processing, pharmaceuticals, and food processing.
Weir Type Rubber Lined Diaphragm Valves are manufactured according to international standards. The unique design ensures that the flowing media does not come into contact with the working components, significantly extending the service life of the valve. These valves feature a self-draining function to prevent residue build-up, ensuring cleaner and healthier pipelines. The valve body is available in various materials, including cast iron, ductile iron, and cast steel. Lining materials such as Glass, ETFE, PFA, PVDF, and Halar rubber can be specially processed to meet specific requirements.
Technical Specifications
» Size: 3/4-16 Inch (DN20-DN400)
» Pressure Rating: PN10, PN16, Class 125 LB, Class 150 LB
» Design & Manufacture: BS 5156-85, MSS SP-88, GB 12239-89
» Face to Face Dimension: BS 5156-85, ANSI B16.10, GB 12221-85, DIN 3202
» Flanged Dimension: BS, DIN PN10 & 16, JIS 10K, ANSI B16.5 Class 125 & 150 LB
» Inspect & Test: BS 5156, MSS SP-82, GB/T 13927
» Face to Face: EN 558-1, BS 5156, DIN 3202 Series F1
» Material: Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, Duplex Stainless Steel, ASTM A216 WCB, A351 CF8, CF8M
» Lining: Hard Rubber (Ebonite), Natural, Neoprene, Hypalon, Butyl, EPDM, FEP, PFA
» Diaphragms: Natural, Neoprene, Hypalon, Butyl, EPDM, Silicone, PTFE backed by Neoprene Rubber
» Stem or Spindle: AISI 410, 304, 316
» Operation: Handwheel, Pneumatic, Electric
» Handwheel: Ductile Iron, Aluminum Alloy
» Temperature Range: -29°C to 150°C

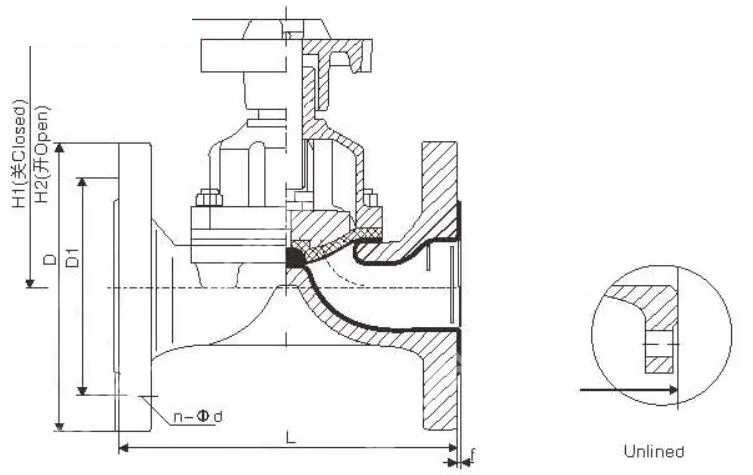

Materials for Main Parts
| Item No | Part Name | Material |
| 1 | Body | Cast Iron, Carbon Steel, Stainless Steel |
| 2 | Bonnet | Cast Iron, Carbon Steel, Stainless Steel |
| 3 | Lining | PTFE, FEP, PFA lining |
| 4 | Diaphragm | FEP or PFA Backed by Rubber |
| 5 | Disc | Cast Iron, Carbon Steel |
| 6 | Stem | Carbon Steel, Stainless Steel |
| 7 | Handweel | Cast Iron |
