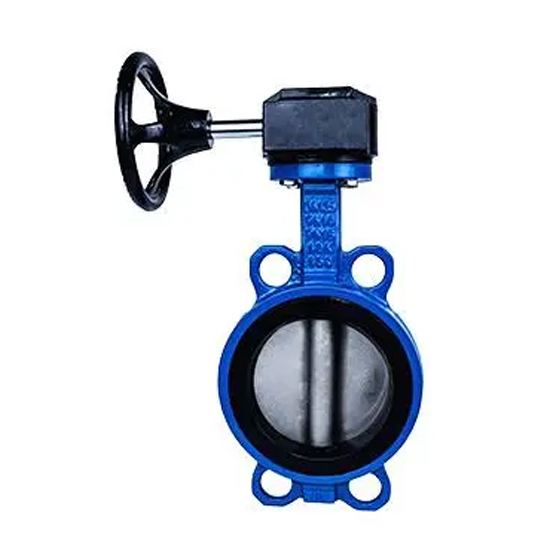

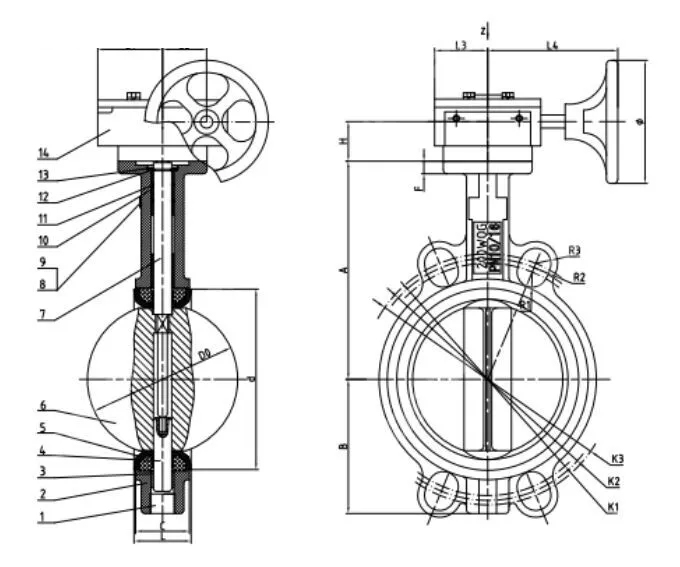

Wafer Concentric Butterfly Valve, API 609, GGG40, 4 IN, CL150

Key Specifications / Features

The Wafer Concentric Butterfly Valve features a ductile iron GGG40 body and is designed per API 609 standards. With a 4-inch (DN100) size, Class 150 LB (PN20) pressure rating, and worm gear operation, this valve provides reliable flow regulation and tight shutoff. Its wafer design ensures easy installation in tight spaces.

The Wafer Concentric Butterfly Valve is designed to maintain a reliable seal against bi-directional pressure differentials, preventing backflow in systems intended for unidirectional flow. The valve achieves this with a precisely fitted seal, gasket, and O-ring, all precision-machined to ensure a tight seal. Both the upstream and downstream sides of the valve feature a flat valve face for improved sealing. The valve body is equipped with threaded inserts on both sides, allowing for installation using two sets of bolts and no nuts. This installation method permits the disconnection of either side of the piping system without disturbing the other, providing flexibility and ease of maintenance.

Technical Specifications

Nominal Size Range: 2-48 Inch (DN50-DN1200)
Pressure Rating: Class 150 LB, PN10, PN16
Materials: Ductile Iron GG25, GGG40, ASTM A216 WCB, A351 CF8, CF8M, CF3, CF3M
Optional Seatings: Resilient NBR, EPDM, VITON
Operation: Handle, Handwheel, Pneumatic, Electric
End Connections: Wafer, Lug, RF Flange
Design and Manufacture Standards: GB/T 12228, API 609
Face-to-Face (End-to-End): GB/T 12221
Flanged Connection: ANSI B16.5, GB/T 9113
Test and Inspection Standards: API 598, GB/T 13927
Temperature Range: -29°C to 120°C
Mediums: Water, Gas, Oil, etc.
