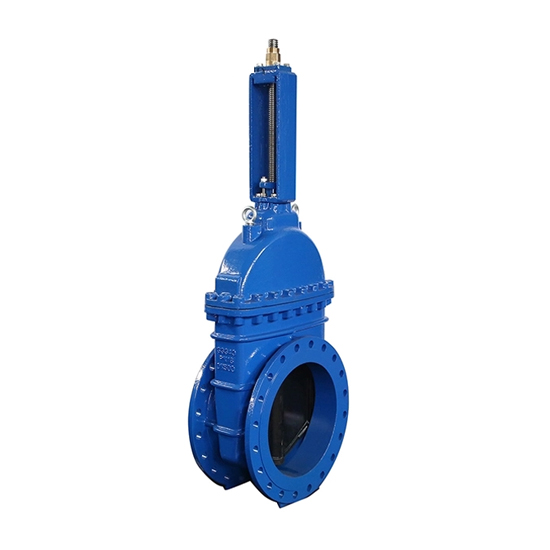

DIN 3352 F4 Gate Valve, GS-C25, DN400, PN16, Rising Stem, RF

Key Specifications / Features

The China DIN 3352 F4 Gate Valve Plant offers a robust solution for industrial fluid control. This gate valve features a cast carbon steel GS-C25 body, ensuring durability and reliability. With a DN400 (16-inch) size and a PN16 (Class 150 LB) pressure rating, it is designed to handle high-pressure applications. The rising stem design provides easy operation and monitoring, while the RF flanged ends ensure secure connections. Handwheel operation makes it user-friendly, making it ideal for various industrial settings.

Wedge Gate Valves are meticulously designed and manufactured to ensure that the leakage of volatile organic compounds (VOCs) is kept to less than 100 parts per million (ppm). To achieve this, extensive baseline laboratory testing, encompassing both static and cycle testing, has been conducted. This testing has established the critical design parameters needed to achieve low-emission sealing in both the stem packing seal area and the bonnet gasket sealing area. Furthermore, an in-house testing procedure has been developed and is periodically performed. This ensures that the standard product design and manufacturing criteria consistently result in Wedge Gate Valves meeting a maximum VOC leakage of 100 ppm before shipment.

Technical Specification

» Type: Wedge Gate Valve
» Nominal Diameter: DN50-DN1000
» Design Pressure: PN6-PN25
» Body/Bonnet/Wedge: Cast Steel (EN 1.0619), Stainless Steel (EN 1.4308; EN 1.4408), Alloy Steel EN 1.7335 (WC6)
» Stem: X20Cr13 or EN 1.4021, Stainless Steel (EN 1.4308; EN 1.4408)
» Seat: 13Cr, 18Cr, Stellite
» End Connections: RF Flange, Groove Flange, BW
» Operation: Handwheel, Bevel Gear, Electric, Pneumatic
» Structural Formation: BB-BG-OS & Y
» Design Standard: DIN 3352
» Face-to-Face Dimension: According to EN 558-1 15 (DIN 3202 F5 series)
» Flange Ends: DIN 2543 to 2547, EN 1092-1, GOST 12815, GOST 12819
» Butt Welded End: EN 12627
» Test & Inspection: DIN 3230

Product Features

» Anti-friction ball thrust bearing: Reduces friction between mating parts to ensure smooth operation
» Grub screw: Secures yoke nut in the bonnet
» Grease nipple: Supplies lubricant to the mating parts
» OS&Y, Outside Stem and Yoke
» Metal-sealed, Trim # 1, #5, #8, #10 and etc.
» Optional Locking Device or Stem Extension
» Optional Direct Mounting to ISO 5211
» Full Port
