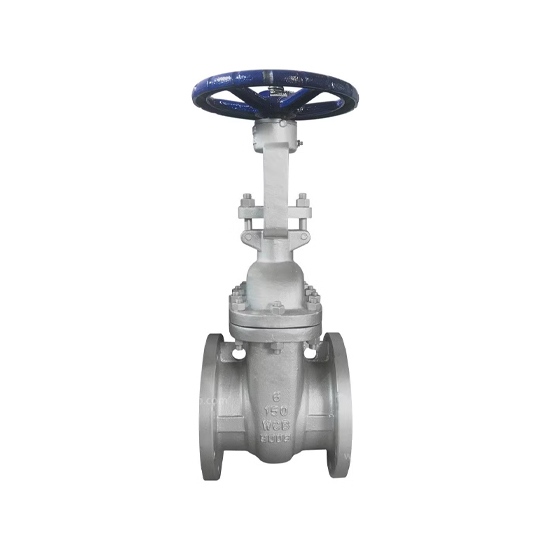

ASTM A216 WCB Gate Valves, API 600, 6 Inch, 150 LB, OS&Y, FP
- Product Name:
- ASTM A216 WCB Gate Valves
- Design Standard:
- API 600
- Body Material:
- ASTM A216 WCB
- Size:
- 6 Inch
- Pressure:
- Class 150 LB
- End Connection:
- RF
- Operation:
- Handwheel
- Features:
- Flexible Wedge, Full Port, OS&Y
Key Specifications / Features
The ASTM A216 WCB Gate Valve, manufactured per API 600 standards, features a flexible wedge design for enhanced sealing and durability. With a 6-inch (DN150) size, Class 150 LB (PN20) pressure rating, and full port for optimal flow, this valve includes OS&Y (Outside Stem and Yoke) construction and RF flanged ends for secure connections.
Cast Steel Gate Valves are engineered and manufactured to achieve leakage levels of less than 100 ppm (parts per million) of volatile organic compounds (VOCs). Comprehensive baseline laboratory testing, including both static and cycle testing, has been conducted to establish the critical design parameters required for low-emission sealing in the stem packing and bonnet gasket areas. In-house testing procedures have been developed and are regularly performed to ensure that standard product designs and manufacturing criteria consistently result in Cast Steel Gate Valves meeting the maximum VOC leakage standard of 100 ppm prior to shipment.
Technical Specifications
» Nominal Diameter: NPS 1/2-48 Inch (DN15-DN1200)
» Temperature Range: -29°C to 595°C
» Medium: Water, gas, oil, etc.
» Design Pressure: Class 150-2500 LB (PN10-PN420)
» Materials: ASTM A216 WCB, WCC, A217 WC6, WC9, C5, C12A, A352 LCB, LCC, A351 CF8, CF8M, CF3M, CF8C, CN3MN, CK3MCUN, CN7M, A890 4A (CD3MN), 5A (CE3MN), 6A (CD3MWCuN), B148 C95800, C95500
» End Connections: Flanged (FF, RF, RTJ) to international standards
» Operation: Hand wheel, bevel gear, electric, pneumatic
» Design and Manufacture: ANSI B16.34, API 600, API 6D, API 603, BS 1414
» Face to Face (End to End): ANSI B16.10, API 6D
» Flanged Connection: 2-24 Inch to ANSI B16.5, 22 Inch, 26-36 Inch to MSS-SP-44 or to API 605 on request
» Test and Inspection: API 598, API 6D
» Butt Welded End: ANSI B16.25
Product Features
» Anti-Friction Ball Thrust Bearing: Reducing friction for smooth operation.
» Grub Screw
» Grease Nipple
» OS&Y (Outside Stem and Yoke)
» Metal-Sealed: Available with API Trim #1, #5, #8, #10, etc.
» Optional Locking Device or Stem Extension
» Optional Direct Mounting to ISO 5211
» Full Port
