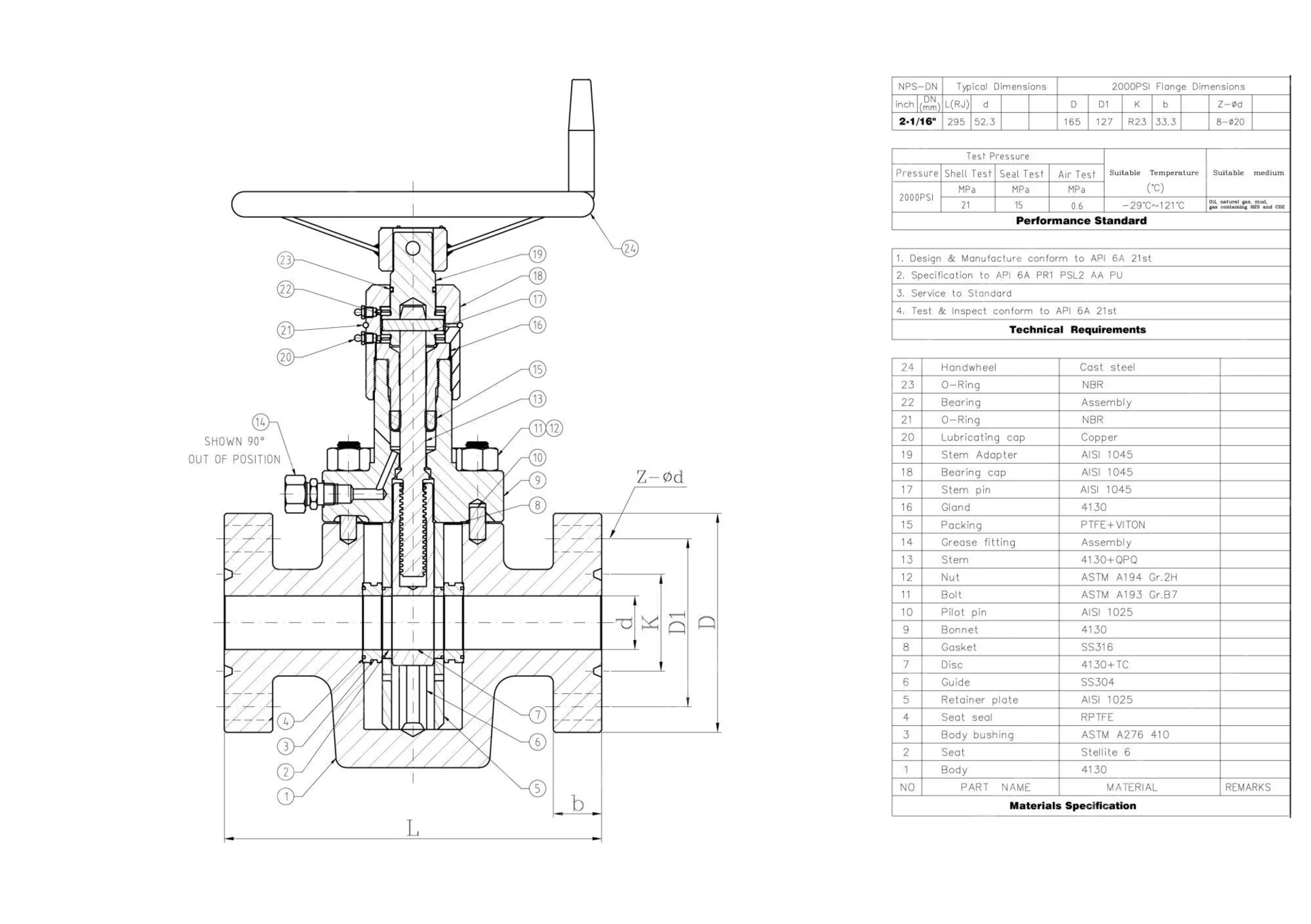

API 6A Slab Gate Valve, AISI 4130, 2-1/16 Inch, 2000 PSI

Key Specifications / Features

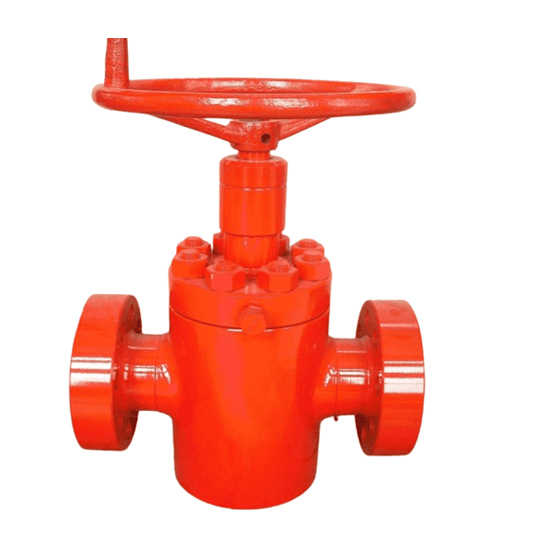

The FC Type Slab Gate Valve is manufactured in China to meet API 6A standards, designed for high-performance applications. Made from Alloy Steel AISI 4130, it features a 2-1/16 inch size and a pressure rating of 2000 PSI. This valve is handwheel operated for easy control and comes with flanged ends for secure installation.

The API 6A FC-type gate valve performs well under high pressure and is suitable for use in oilfield wellhead, Christmas tree, and manifold systems ranging from 2000 to 15000 psi. The SGA/B series rigid flat gate can be replaced by the expansion gate. Materials suitable for H2S medium should be selected in accordance with the latest NACE MR-01-75 specification.

Product Range

» Design Basis: API 6A
» Size Range: 1-13/16 Inch to 7-1/16 Inch
» Pressure Range: 2000-15000 PSI
» Main Material: AA-HH
» Applicable Temperature: -60°C to 121°C
» Specification Level: PSL-1 to PSL-3
» Performance Level: PR1 to PR2
» Temperature Range: K to U

Design Features

» Forged Steel Body/Bonnet
» Low Operating Torque
» Metal-to-Metal Body/Bonnet Sealing
» Metal-to-Metal Rear Seal that Pressurizes the Ram at the Switch Position
» Lubricating Nipples Added for Easy Maintenance
» Ensuring Ram Lubrication with Ram Guide Design to Protect the Ram Surface
» Manual or Hydraulic/Pneumatic Drive for Automatic Operation
» Simple, Reliable Structure with Low Cost
» Flange or Threaded Connection
