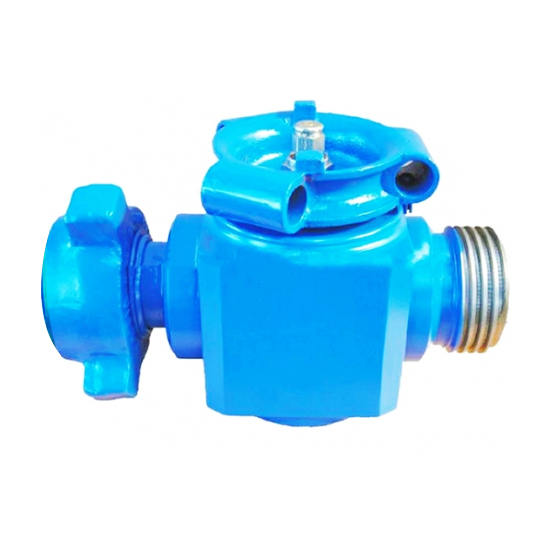

API 6A Plug Valve, AISI 4130, 2 Inch, 15000 PSI, M * F Ends

Key Specifications / Features

The API 6A Plug Valve is engineered for high-performance applications, featuring a durable alloy steel AISI 4130 body. This 2-inch (DN50) valve operates at a pressure rating of 15,000 PSI, making it suitable for high-pressure systems. It is designed with male and female threaded ends for easy installation and secure connections.

API 6A Plug Valves are indispensable for connecting the high-pressure manifold during cementing and fracturing operations in oil fields. They are also used for similar high-pressure fluid control operations. To date, this product is ideal for use in cementing and fracturing manifolds due to its features such as compact structure, low torque, easy maintenance, quick opening action, labor-saving design, and more.

Product Features

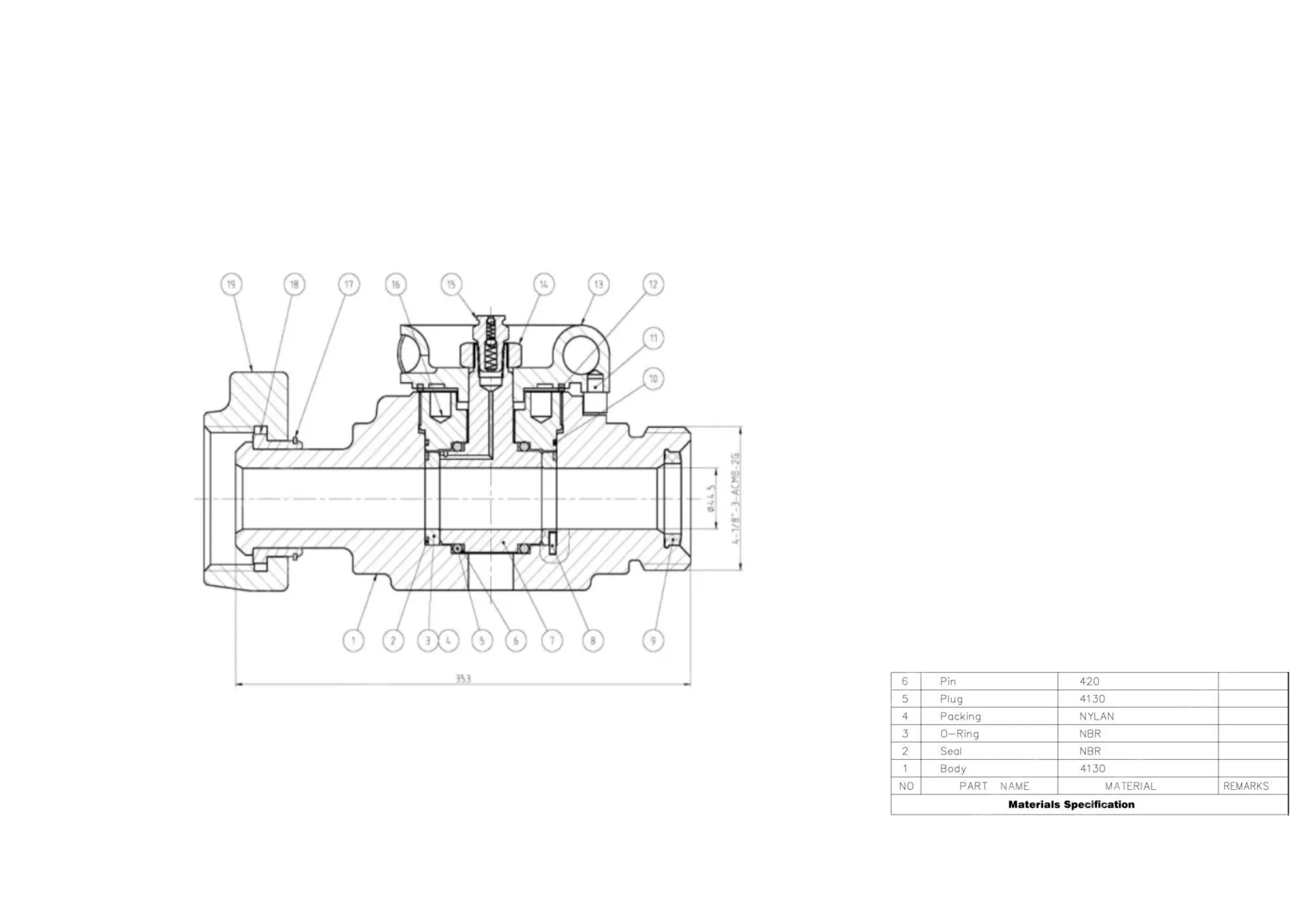

» The plug valve is primarily composed of the body, hand wheel, plugger, and other components.
» The 1502 union connection is used to connect the inlet and outlet to the pipeline (customized options are available based on specific requirements).
» The precise fit between the valve body and the liner is achieved through cylindrical fitting. The sealant is embedded along the outer cylindrical surface of the liner to ensure a hermetically sealed connection.
» A cylindrical metal-to-metal fit between the liner and the plugger ensures high fitting accuracy and reliable sealing performance.
» Note: Even under a pressure of 15,000 psi, the valve can be opened or closed with ease.

Technical Specifications

» Execution Standard: API SPEC 6A
» Nominal Sizes: 2–4 Inch
» Operating Pressure: 2,000–15,000 PSI
» Product Specification Level: PSL1–PSL3
» Performance Requirement Level: PR1–PR2
» Product Material Grade: EE–FF
» Operating Temperature: P.U (-29°C to 121°C)
