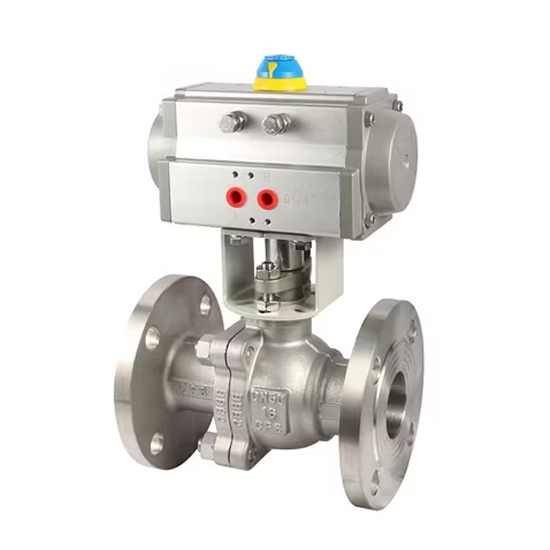

Heavy Duty Industrial Pneumatic Actuator Ball Valve DN50, PN16 Flanged Type
- Design Standard:
- API 6D, ASME B16.34
- Body Material:
- Wcb, CF8, CF8m
- Size:
- DN50
- Pressure:
- PN16
- Application:
- Ball Valve
- Materials:
- Stainless Steel
- Ball Material:
- 304, 316
- Connection:
- Flange
- Flange Standard:
- ASME B16.5
- HS Code:
- 8481804090
- Stem Material:
- 304, 316
Ball Valve - Reliable and Durable Solution for Industrial Flow Control
Our Ball Valve is designed for efficient and reliable flow control, providing excellent sealing performance and durability. With its quarter-turn operation and versatile design, it is widely used in industries such as oil and gas, chemical processing, water treatment, and power generation.
Key Features:
- Multiple Types: Available in flanged, two-piece, cast steel, fully welded, stainless steel, ANSI standard, and gear-operated models.
- Superior Sealing: Ensures tight shutoff to prevent leakage, even under high pressure and temperature conditions.
- Durable Materials: Constructed from high-quality materials like stainless steel and cast steel, offering resistance to corrosion and wear.
- Ease of Operation: Quarter-turn design for quick and smooth opening or closing, with options for manual, gear, or automated operation.
- Versatile Applications: Suitable for handling liquids, gases, and slurries in various industrial environments.
The Ball Valve combines robust construction with excellent performance, making it an essential component for modern industrial systems.
Product Parameters
| Parameter | Details |
| Model | Q341F ANSI Standard Ball Valve |
| Material | Cast Steel (WCB) or Stainless Steel (CF8/CF8M) |
| Size Range | DN50 - DN600 (2" - 24") |
| Pressure Rating | PN16, PN40 |
| Connection Type | Flanged (RF, RTJ) |
| Design Standard | ANSI B16.34, API 6D, ASME B16.10 |
| Face-to-Face Standard | ANSI B16.10, ASME B16.34 |
| Flange Standard | ANSI B16.5, DIN EN1092-1, JIS B2220 |
| Testing Standard | API 598, ISO 5208 |
| Temperature Range | -29°C to 200°C (-20°F to 392°F) |
| Operation Method | Manual, Electric Actuator, Pneumatic Actuator |
| Medium | Water, Oil, Gas, Petrochemical, etc. |
| Application | Water Treatment, Oil & Gas, Petrochemical, Power Plants, etc. |
